ULTRA HIGH POWERTEMPRATURE-CONTROLLED LEAD-FREE SOLDERING STATION
RX-892AS

Trouble with heavy-duty and high-capacity parts?

Package Contents

Tip is not included.

Revolutionary Functions

Advanced intelligent features in standard installation.

PRODUCT SPECIFICATIONS / FUNCTIONS

Multi-Voltage

Accepts 100 V – 240 V. Adaptable and worry-free.



Grip is Light and Nimble

90% lighter than standard 500 W sheet metal irons. Light enough to use on PCBs. Will save your hands from repetitive strain. Grip does not get too hot, either.

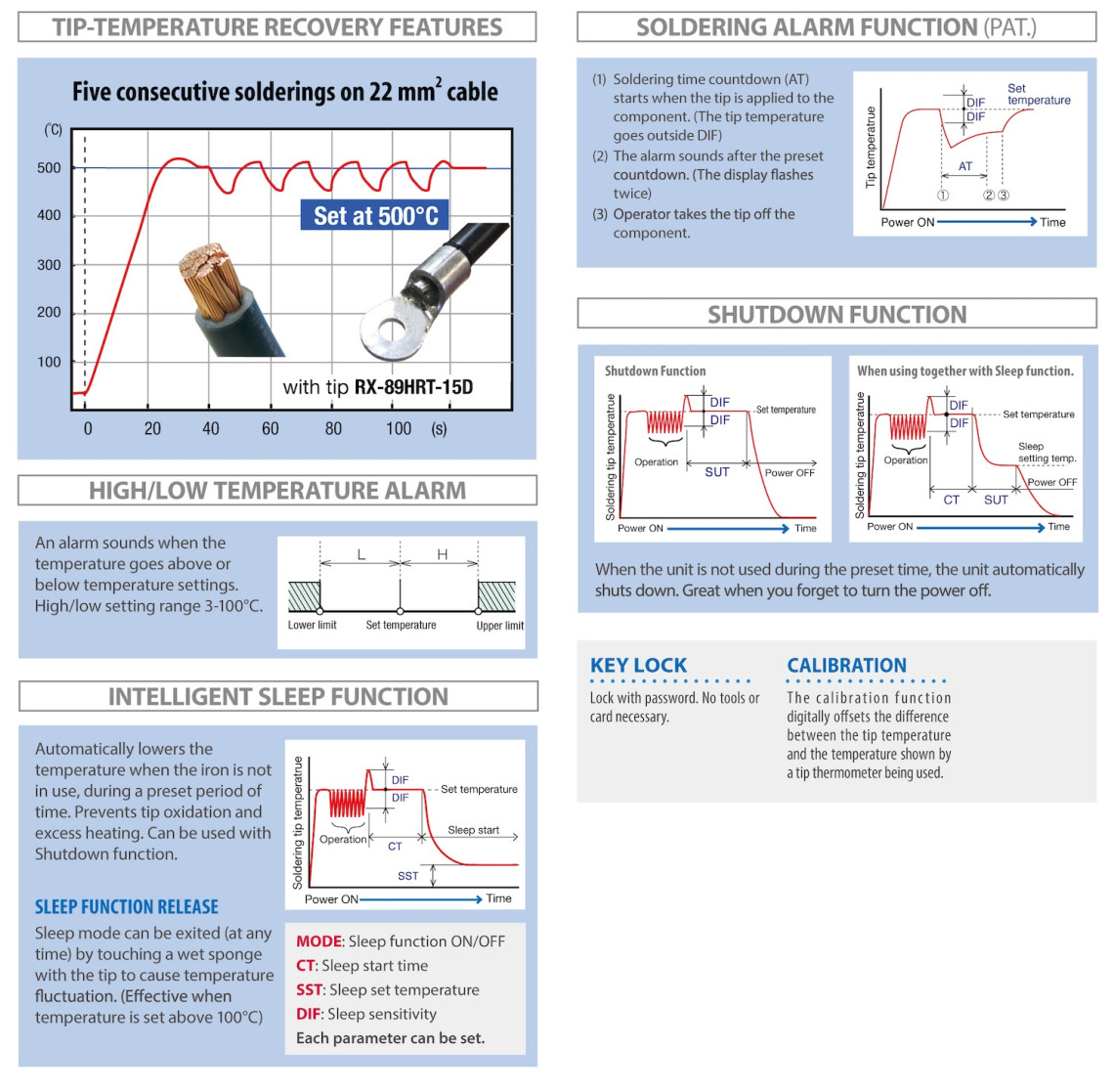

Unprecedented Tip-Temperature Recovery Features

Great high recovery from world’s first high-density 500 W heater in combination with our original sensitive sensor. We will shock you!

Product Specifications

Specifications

Model RX-892AS
Voltage 100–240 V AC 50/ 60 Hz
Power Consumption 630-560 W
Power Cord Length 1.5 m inlet type
Temperature Setting Range 50–500°C
Ripple temperature ±5˚C (unloaded)
Insulation Resistance  Over 100 MΩ (500 V DC)
Applicable Iron Units RX-89GAS
Accessories Iron Unit (RX-89GAS)
Soldering Iron Stand (ST-29)

Control Unit

Output Voltage 40 V DC
Dimensions   136 (W) × 240 (H) × 184 (D) mm
Weight  4.3 kg

Iron Unit

Model RX-892AS
Voltage 100–240 V AC 50/ 60 Hz
Power Consumption 630-560 W
Power Cord Length 1.5 m inlet type
Temperature Setting Range 50–500°C
Ripple temperature ±5˚C (unloaded)
Insulation Resistance  Over 100 MΩ (500 V DC)
Applicable Iron Units RX-89GAS
Accessories Iron Unit (RX-89GAS)
Soldering Iron Stand (ST-29)

*The length does not include the cord bushing. The weight does not include the cord.

Replacement Tips

RX-89HRT-10D
RX-89HRT-15D
RX-89HRT-15A
RX-89HRT-5BC
RX-89HRT-5D
