TEMPERATURE-CONTROLLED SOLDERING STATION
RX-780AS

Smart Iron Series. Economical.

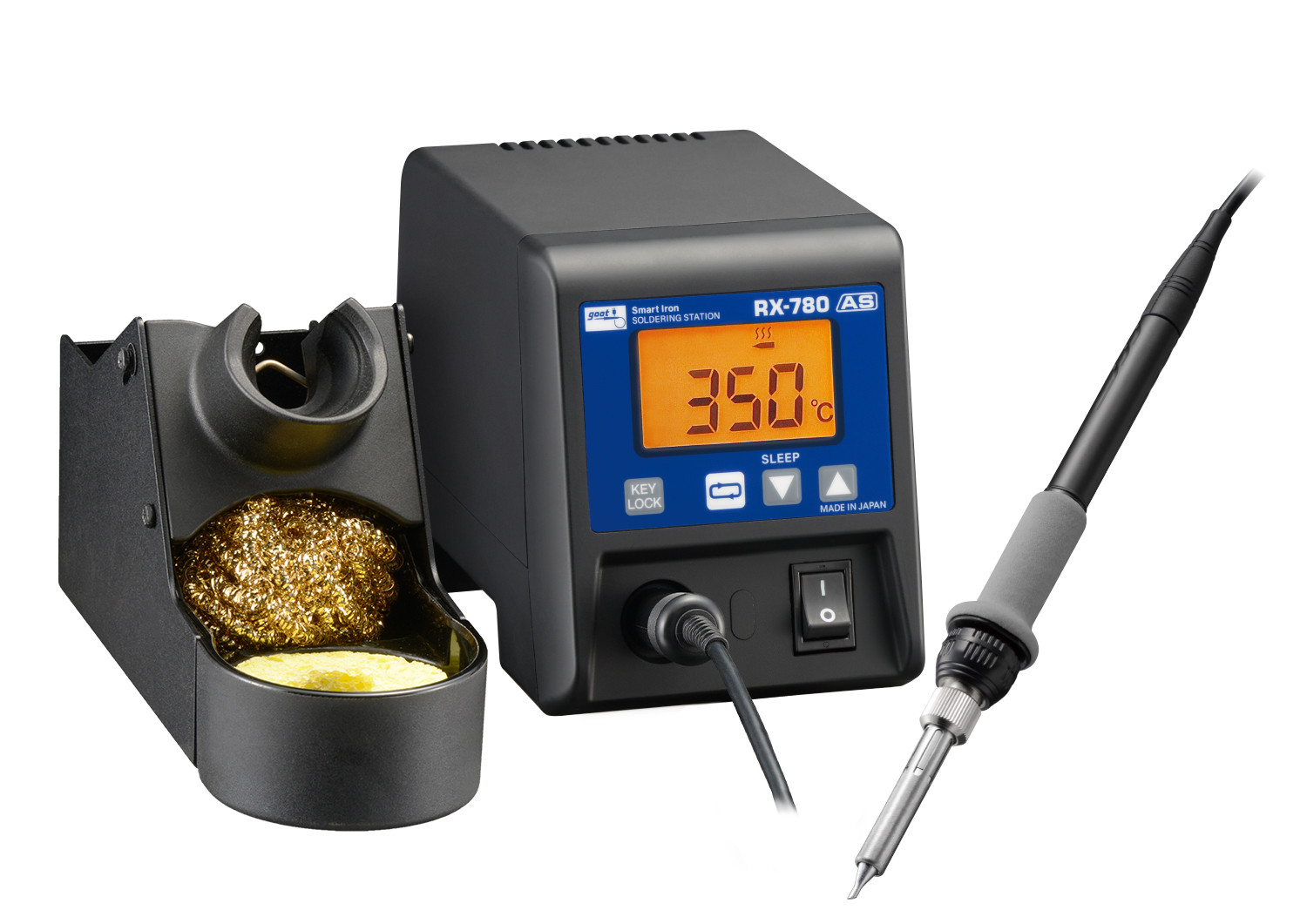

Package Contents	Control Unit Soldering Iron (PX-28RT-S2C included) Soldering Iron Stand (ST-27 with Brass Wool and Sponge)

Features

Specifications

Replacement Tips

Replacement Parts

Smart Iron Series: Temperature-Controlled Soldering Station

・This lead-free soldering station has excellent heat-recovery.
・Easy to see LCD display with LED back light.
・Compact and space saving.
・Insulated transformer protects workers and their work.
・Sleep/Shutdown functions extend soldering tip life, and ensure safety.

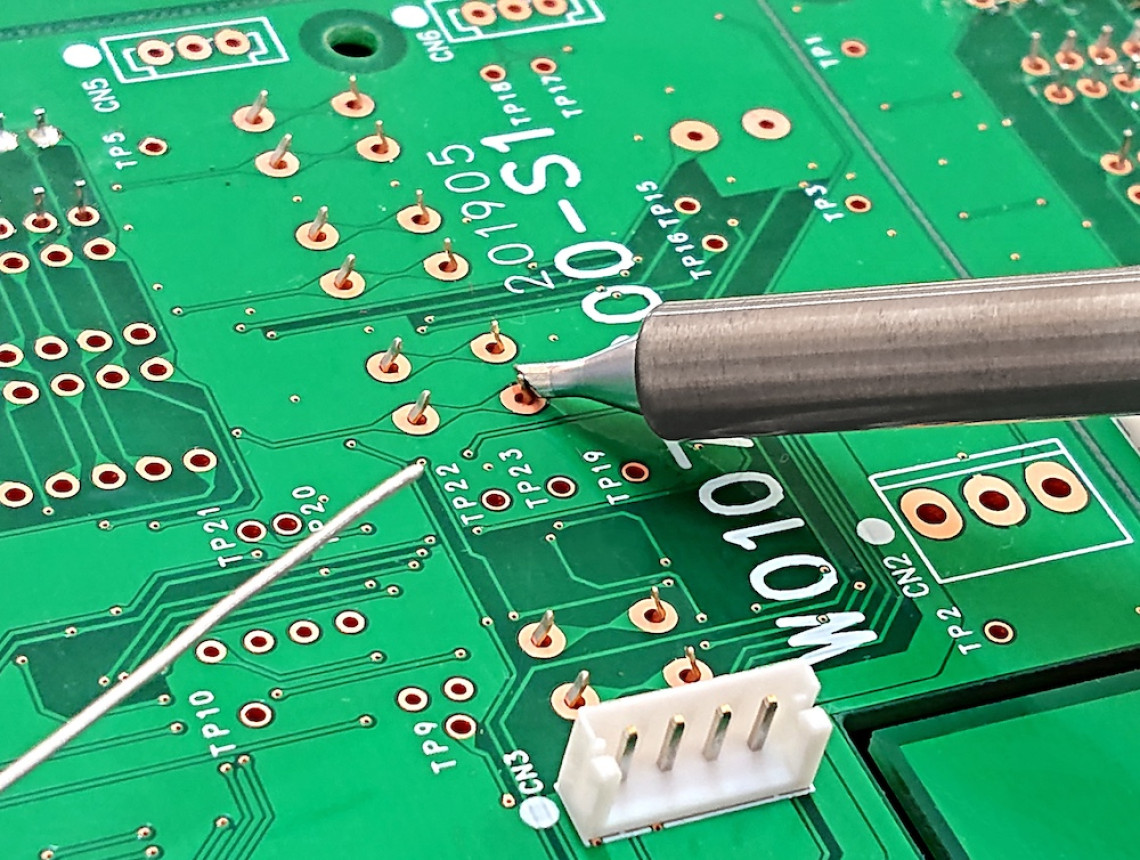

Quick Startup and Excellent Heat Recovery

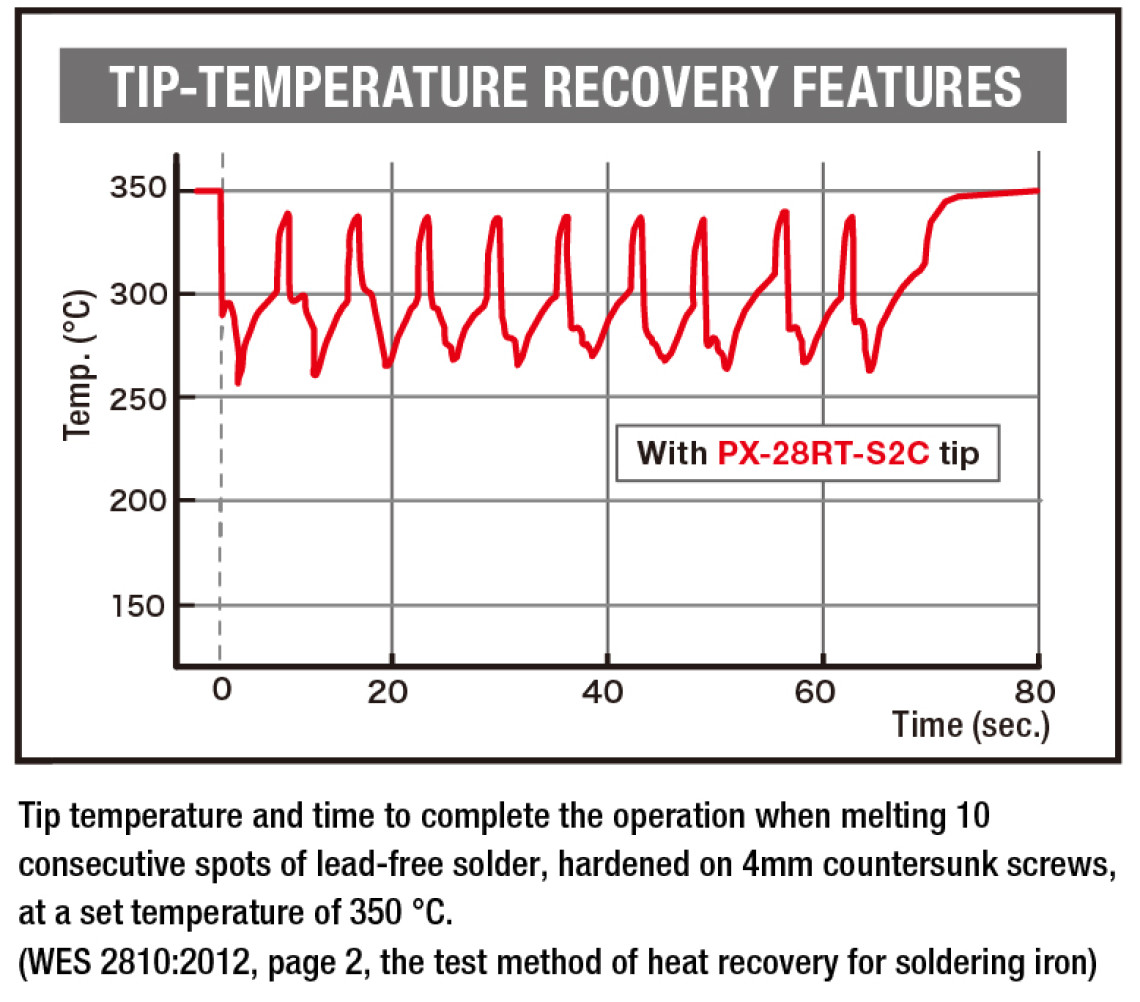

Reaches 350 °C in just 30 seconds with a standard tip.
With a high-power heater and sensor, there is almost no temperature fluctuation during heavy-duty continuous operation.

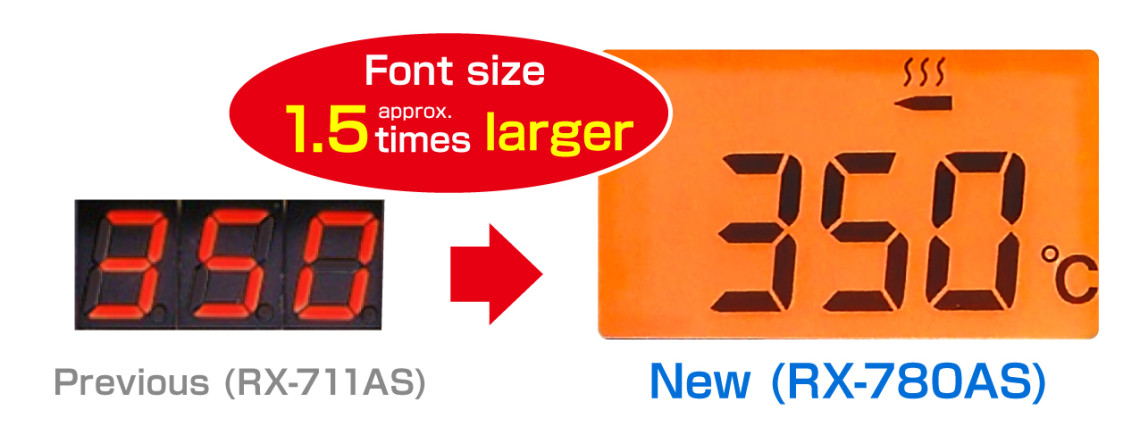

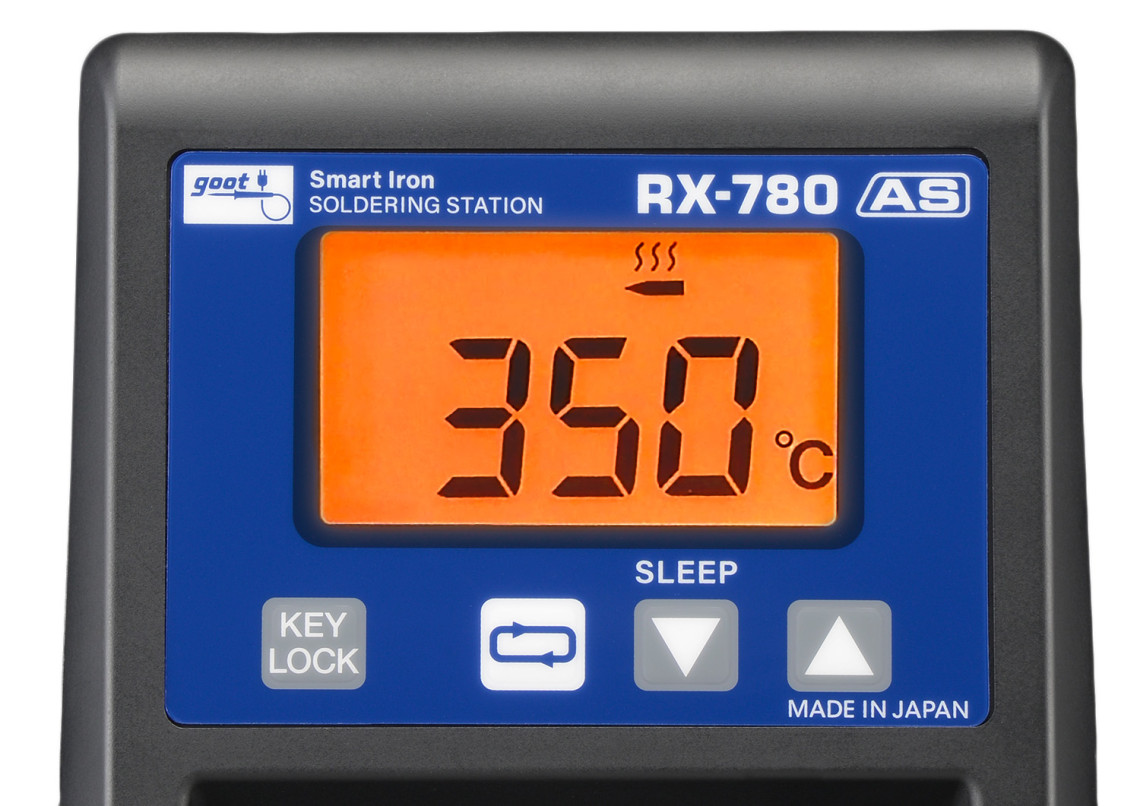

Big Display

Confirm the set temperature at a glance by digital display.
Temperature can be set in 1°C increments from 200°C to 480°C with the UP key and DOWN key.

Easy to see LCD display with LED back light.

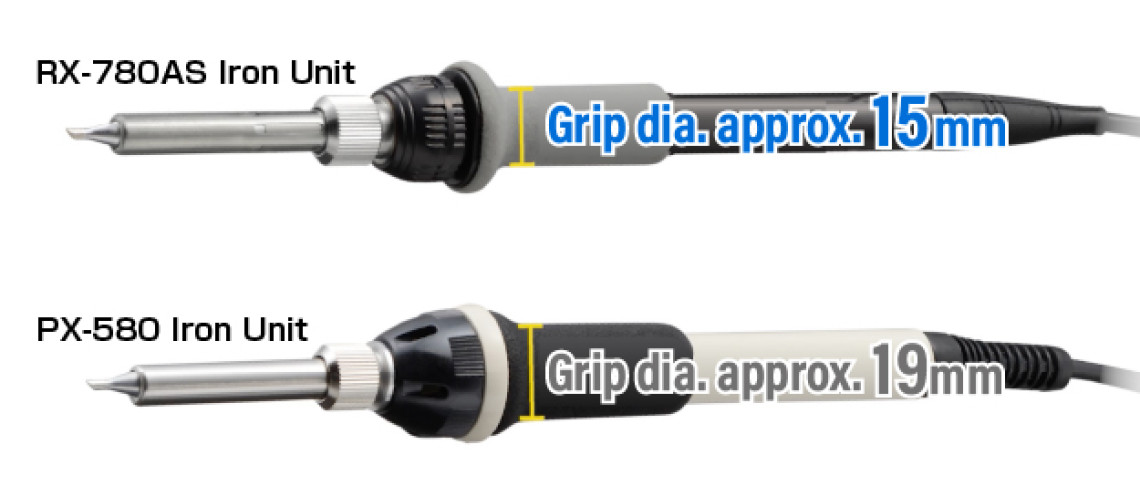

Comfortable, slender Grip

The compact iron unit and flexible cable for easy handling improve workability.

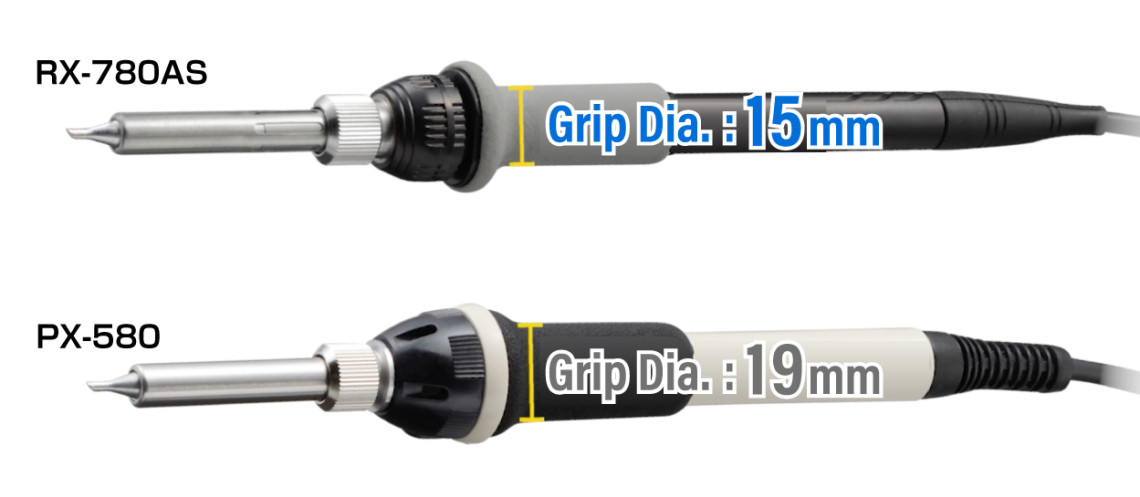

We have made it slender while still achieving less heating of grip.

Smart Functions for Safe, Secure Soldering

SLEEP

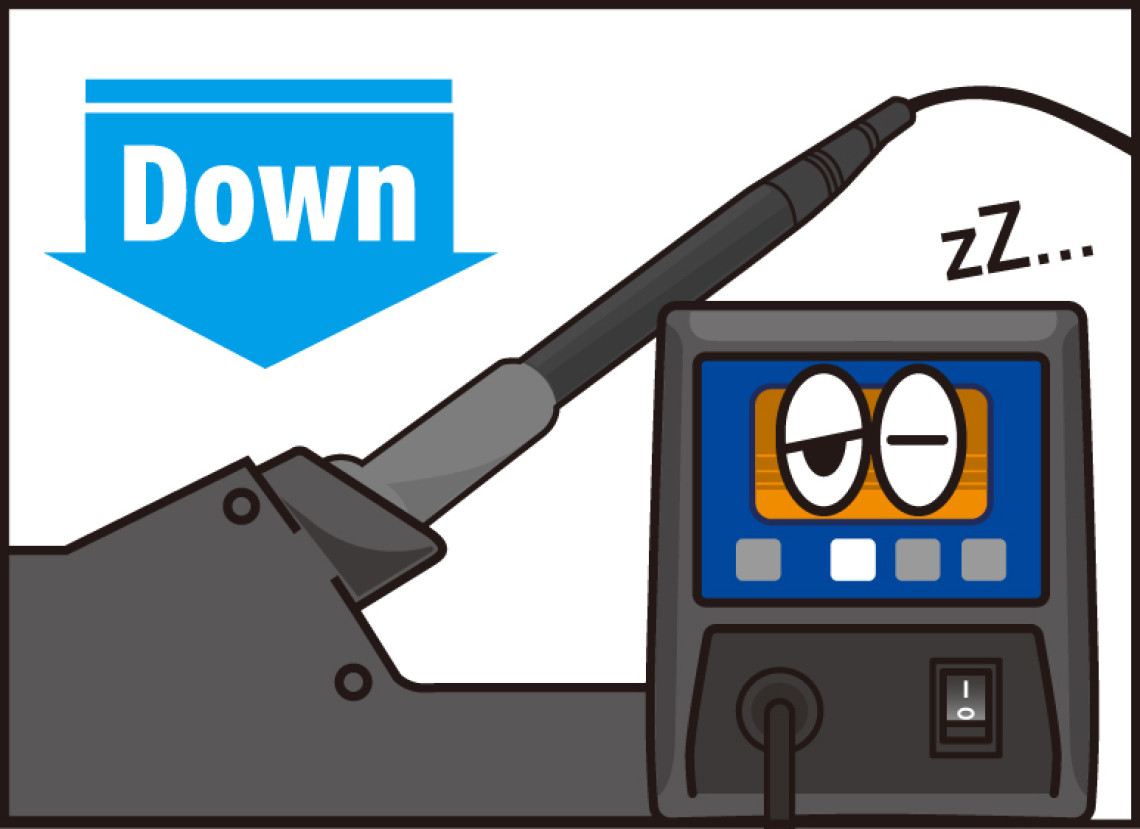

When iron is not used during preset time, it automatically lowers tip temperature to avoid tip-burn.
Can be used with SHUTDOWN function.

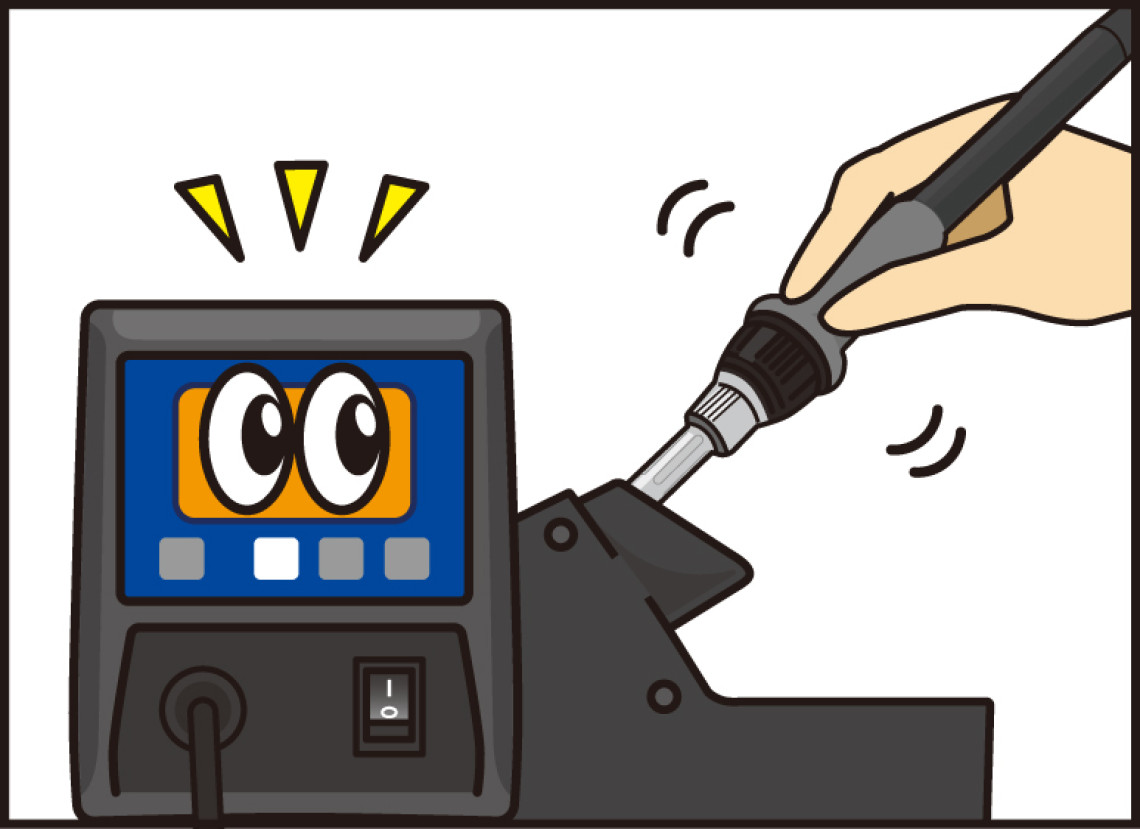

SLEEP FUNCTION RELEASE

In SLEEP mode, a light touch on the soldering iron wakes it up and returns it to the soldering temperature.

SHUTDOWN

When the iron is not used during the preset time, it automatically shuts down.
Temperature is displayed as temperature drops.
Saves electricity, and prevents accidents.

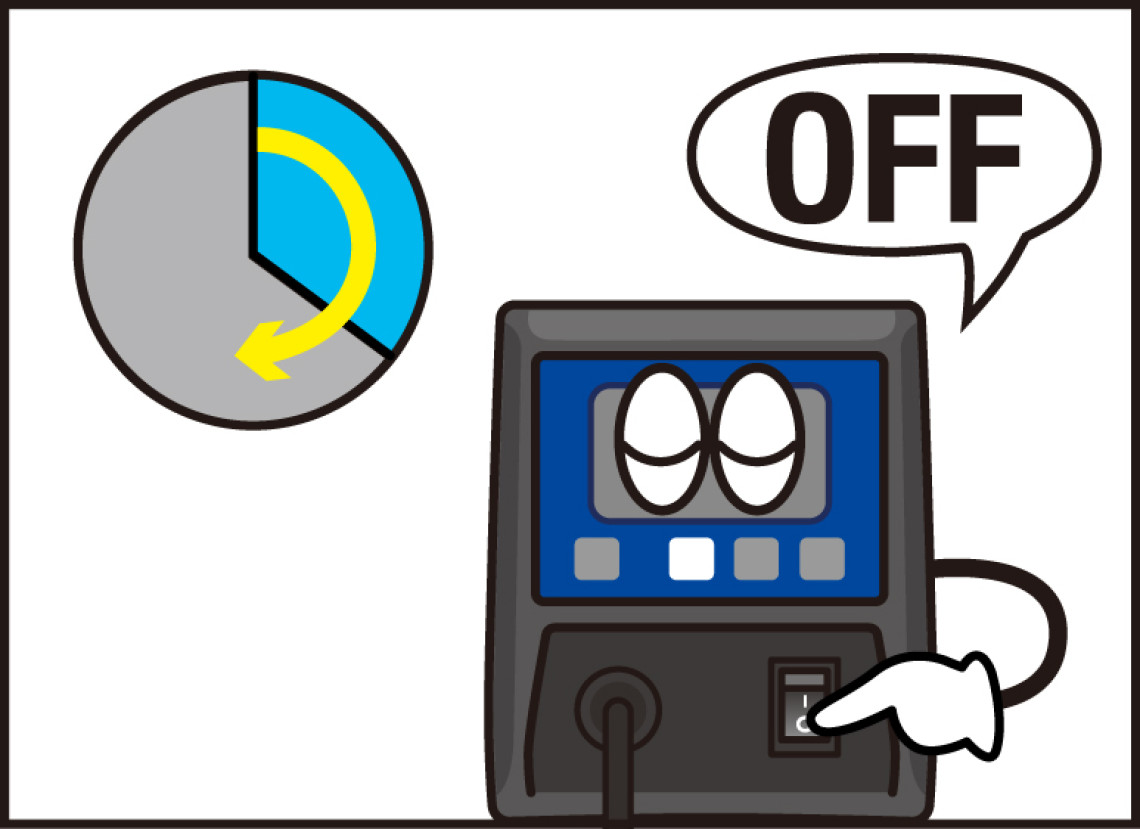

*To use it again, press any button or turn the power switch ON again.

KEY LOCK

Lock with PIN code. No tools or cards necessary.
PIN code locks data settings. Unauthorized personnel cannot make changes.

High Insulation. Reliable 24V Output.

Insulated transformer and low voltage protect sensitive components.

Calibration

Digitally calibrates the difference between the set temperature and the tip temperature as measured by tip thermometer.

Variety of Replacement Tips

Please use PX-28RT/PX-28T series as replacement tips.
Search Replacement Tips or request consultation.
Precision-manufactured and inspected in our own Hiroshima factory.

Parts

Please read manual before attempting anything.

Changing the Tip

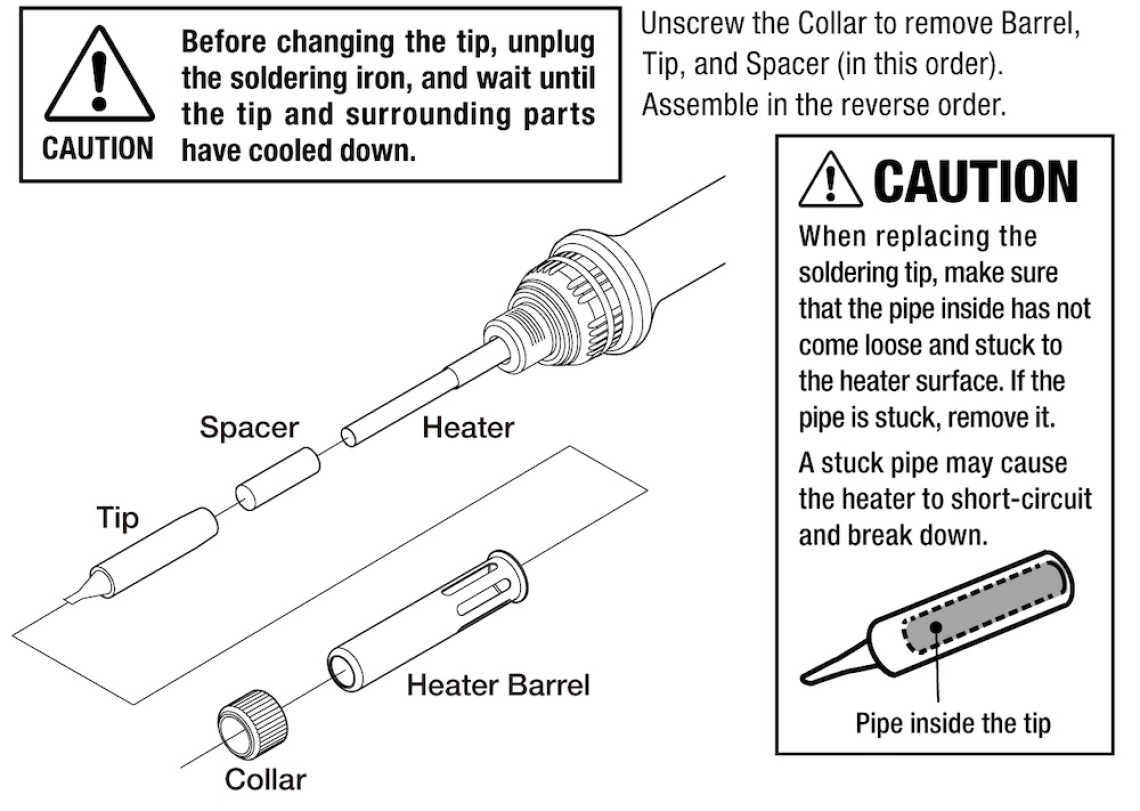

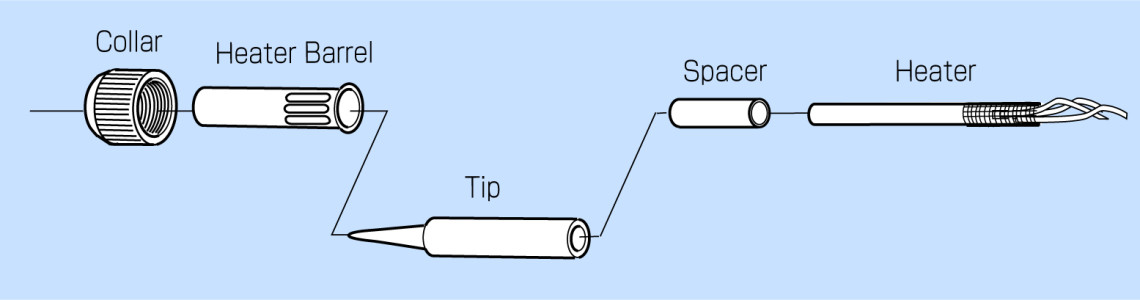

Unscrew the Collar to remove Barrel, Tip, and Spacer. Assemble in the reverse order.

〈CAUTION〉Before changing the tip, unplug the soldering iron, and wait until the tip and surrounding parts have cooled down.

〈CAUTION〉When replacing the soldering tip, make sure that the pipe inside has not come loose and stuck to the heater surface.
If the pipe is stuck, remove it.
A stuck pipe may cause the heater to short-circuit and break down.

Product Specifications

Model		RX-780AS
Voltage		110V, 120V, 220V, 240V AC 50/60Hz
Power Consumption		80W
Soldering Iron Voltage/ Wattage		24V AC / 70W
Temperature Setting Range		200－480℃
Size	Soldering Unit	Overall Length 183mm (w/o cord bushing)
	Control Unit	149(L) × 96(W) × 114(H)mm
Weight	Soldering Unit	48g (w/o cord)
	Control Unit	1.8kg (w/o cord)
Ground Resistance		2Ω or less
Leak Voltage		Less than 2mV
Cord Length of Iron Unit to Control Unit		1.2m
Power Cord Length		1.5m (3 core cord with ground pin)
Accessories		Soldering Iron Stand ST-27
		Soldering Iron Tip（PX-28RT-S2C）
