TEMPERATURE-CONTROLLED LEAD-FREE SOLDERING STATION
RX-812AS

Solder or desolder small parts in small spaces.

Package Contents Station Unit, Soldering Iron (RX-81GAS / Tip is not included), Soldering Iron Stands (ST-22) Brass Wool & Sponges included

Tip is not included.

Thick Tip Coating for Lead-free Soldering

All tips have extra-thick iron plating, to resist erosion by lead-free solder.

Tip Replacement without Tools (PAT.)

Slide-change tip. Easy to replace a hot tip without any other tools.

Wide Variety of Replacement Tips

80 W RX-80HRT Tips also available instead of RX-81HRT tip.

Fastest in Its Class

Reaches set temperature within 4 seconds after turning power on.

Ergonomic Grip Design

New grip is designed for and adapted to ø2.9 mm superfine tip.

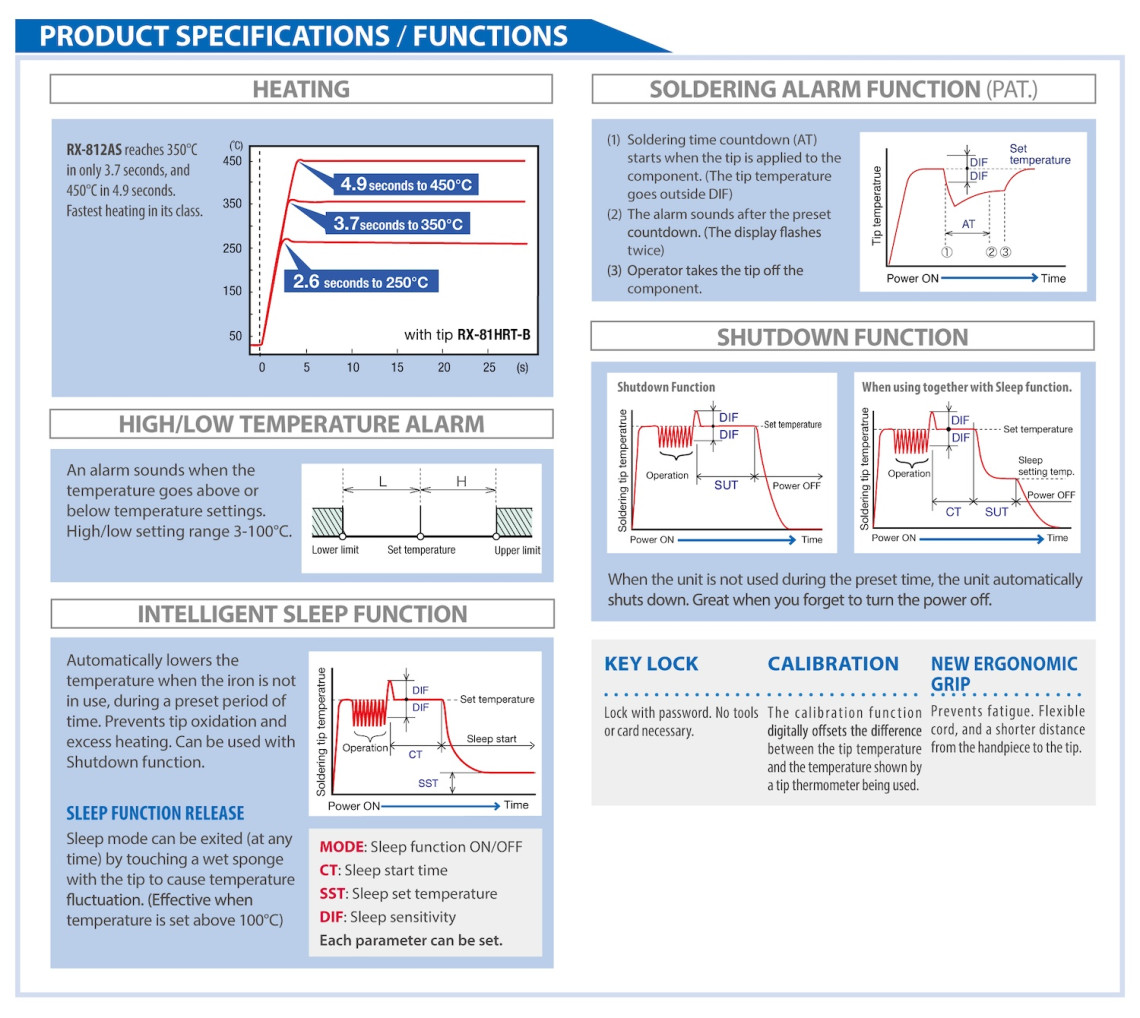

Product Specifications

Specifications

Model RX-812AS
Voltage 110 V, 120 V, 220 V, 230 V, 240 V AC 50/ 60 Hz
Power Consumption 80 W
Power Cord Length 1.2 m
Temperature Setting Range 50–450°C
Ripple temperature ±5˚C (unloaded)
Insulation Resistance  Over 100 MΩ (500 V DC)
Applicable Iron Units Micro-Iron Unit RX-81GAS (included)
80 W Iron Unit RX-80GAS (sold separately)
Soldering Tweezers Unit XST-80 (sold separately)
Accessories Iron Unit (RX-81GAS)
Soldering Iron Stand (ST-22)

Control Unit

Output Voltage 24 V AC
Dimensions   116 (W) × 105 (H) × 194 (D) mm
Weight  4.8 kg

Iron Unit

Model RX-81GAS
Iron Unit Micro-Iron Unit
Voltage / Consumption​ 24 V AC / 72 W
Ground Resistance Less than 2 Ω
Leak Voltage Less than 2 mV
Heater Nichrome heater
Cord Length 1.2 m
Length 149 mm  (with RX-81HRT-SB)
Weight  25 g  (with RX-81HRT-SB)

Overall View of a Tip

RX-80HRT series Overall View

RX-81HRT series Overall View

Replacement Tips

RX-81HRT-B
RX-81HRT-SB
RX-81HRT-0.6C
RX-81HRT-0.5D
RX-81HRT-SBJ
RX-81HRT-1.5K
RX-80HRT-B
RX-80HRT-2B
RX-80HRT-SB
RX-80HRT-LB
RX-80HRT-LBJ
RX-80HRT-BM
RX-80HRT-1BC
RX-80HRT-2.3BC
RX-80HRT-3BC
RX-80HRT-0.5C
RX-80HRT-1C
RX-80HRT-2C
RX-80HRT-2CF
RX-80HRT-2CD
RX-80HRT-3C
RX-80HRT-3CF
RX-80HRT-3CD
RX-80HRT-4C
RX-80HRT-4.7C
RX-80HRT-0.8D
RX-80HRT-1.2D
RX-80HRT-1.6D
RX-80HRT-2.4D
RX-80HRT-2.4SMD
RX-80HRT-3.2D
RX-80HRT-5.4D
RX-80HRT-3K
RX-80HRT-4.5K
RX-80HRT-4.5KH
RX-80HRT-5.5K
