TEMPERATURE-CONTROLLED LEAD-FREE SOLDERING STATION
RX-802AS

6 seconds to set temperature. The ultimate solution for lead-free soldering.

Package Contents	Iron Unit (RX-80GAS), Soldering Iron Stand (ST-22)

Tip is not included.

Features

Specifications

Replacement Tips

Replacement Parts

Fastest in Its Class

Reaches set temperature in just 6 seconds after turning power on.

Reduced Grip Heat

Patented thermal-insulation grip permits comfortable and safe work.

Thick Tip Coating for Lead-free Soldering

All tips have extra-thick iron plating, to resist erosion by lead-free solder.

Excellent Heat Recovery (PAT.)

There is almost no temperature fluctuation during continuous operation. Good for lead-free soldering.

Tip Replacement without Tools (PAT.)

Slide-change tip. Easy to replace a hot tip without any other tools.

Slide the lever in the direction of the arrow. The tip will come out. Hold and pull the plastic housing of the tip.

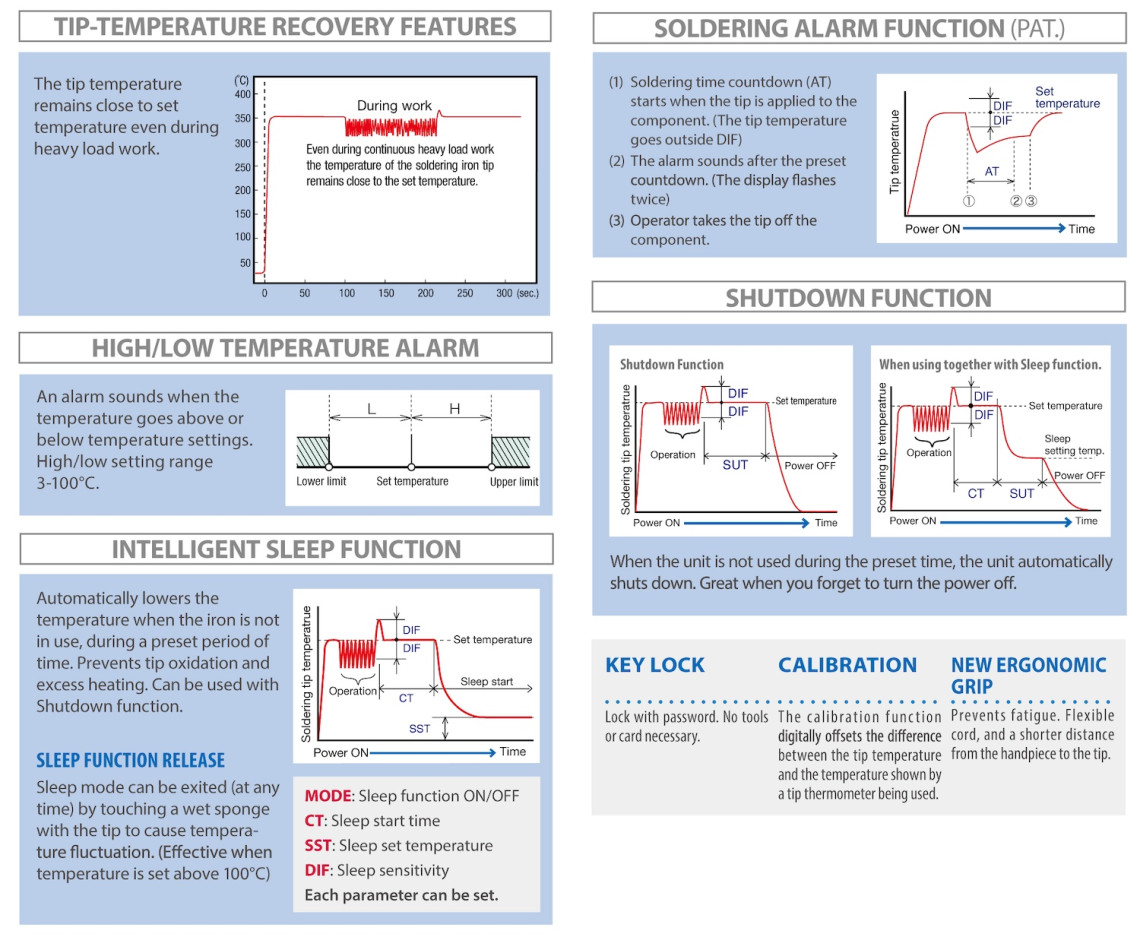

Functions

Calibration of the Tip Temperature

RX-80HRT-B is mounted in the standard unit. When changing to a different type of tip, the calibration of the tip temperature is required before starting soldering work.

Otherwise, there may be a difference between the actual tip temperature and the set temperature of the unit.

Tip number (TIP NO.) may be changed without notice, due to design changes, etc.
Be sure to check the actual engraved tip number of your tip (at the base).

Accessories

Handpiece Grip Rubber(Anti-static)
For quick identification of soldering tasks or types.

RX-80RB: gray , RX-80RB-GR: green
RX-80RB-BK: black , RX-80RB-OR: orange

Applicable Iron Unit: RX-80GAS/RX-85GAS/RX-81GAS

Product Specifications

Specifications

Model	RX-802AS
Voltage	110V,120V,130V,220V,230V,240V AC 50/60Hz
Power Consumption	80W
Power Cord Length	1.2m
Temperature Setting Range	50–450°C
Ripple temperature	±5˚C (unloaded)
Insulation Resistance	Over 100MΩ (500V DC)
Accessories	Iron Unit (RX-80GAS) Soldering Iron Stand (ST-22)

Control Unit

Output Voltage	24V AC
Dimensions	115(W) × 98(H) × 146(D)mm
Weight	1.8kg

Soldering Unit

Voltage/Consumption	24V AC / 72W
Ground Resistance	Less than 2Ω
Leak Voltage	Less than 2mV
Heater	Nichrome heater
Cord Length	1.2m
Length	158mm (with RX-80HRT-BM)
Weight	28g (with RX-80HRT-BM)
