• RoHS2
  • LEAD FREE
  • CE

TEMPERATURE-CONTROLLED LEAD-FREE SOLDERING STATION
RX-852AS

Phenomenal heat recovery with 150W compact high-output heater.

Package Contents

Tip is not included.

Accessories

Handpiece Grip Rubber

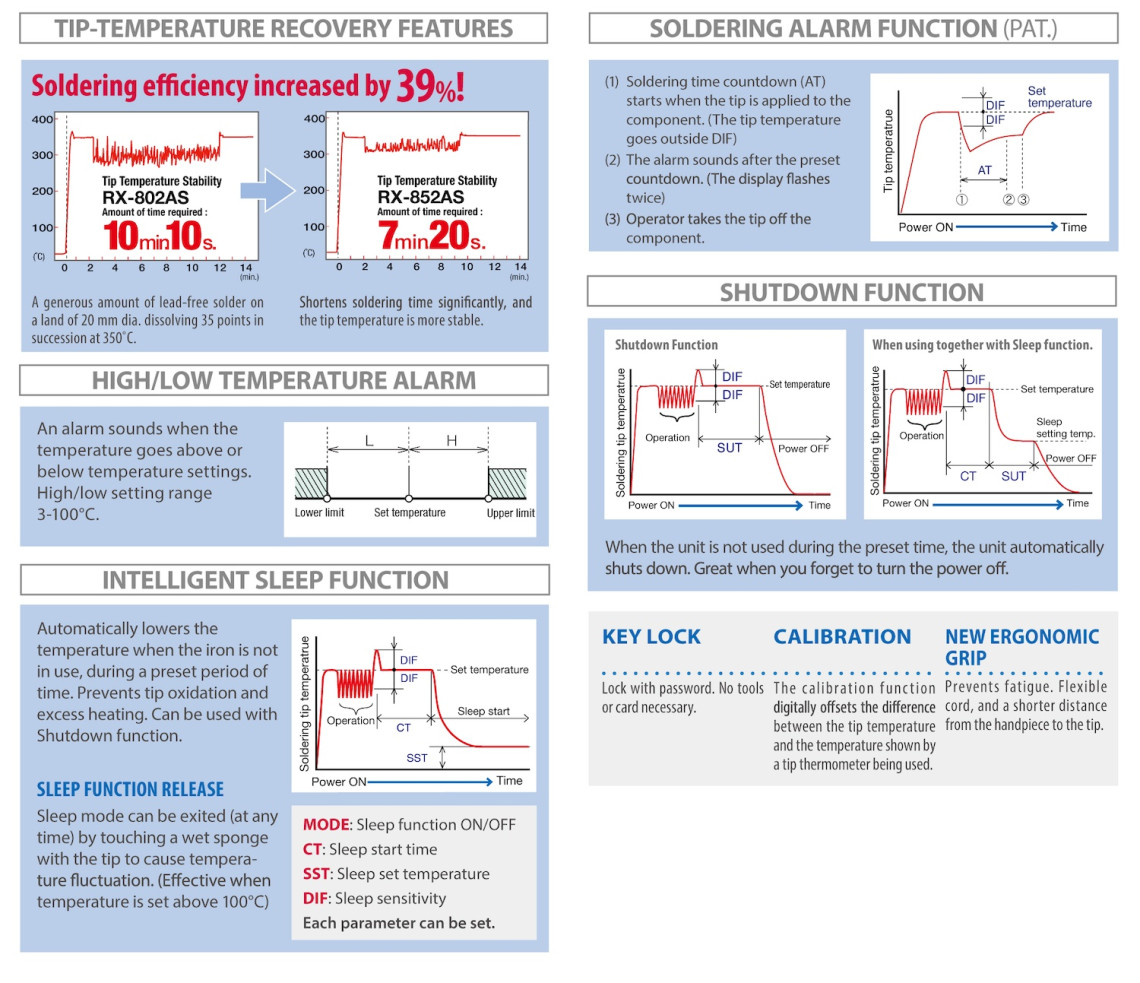

Functions

Tip-temperature Recovery Features

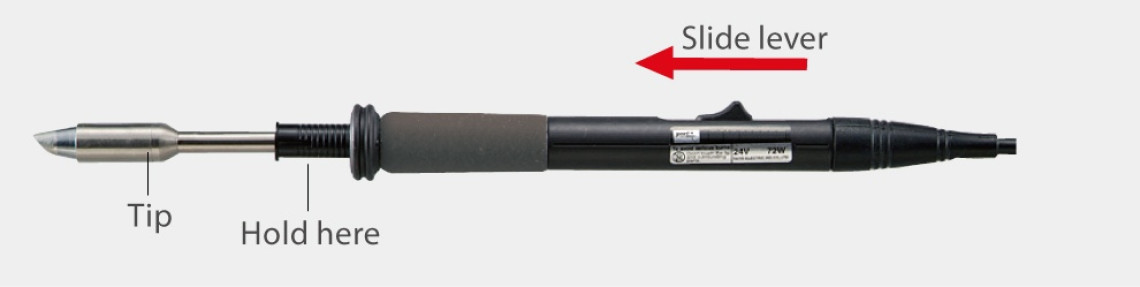

How to Change Tips

Slide the lever in the direction of the arrow. The tip will come out. Hold and pull the plastic housing of the tip.

RX-80HRT Tips also Available

More than 40 tips are available, including the RX-80HRT tips.

Thick Tip Coating for Lead-free Soldering

All tips have extra-thick iron plating, to resist erosion by lead-free solder.

Tip Replacement without Tools (PAT.)

Slide-change tip. Easy to replace a hot tip without any other tools.

Light and Compact Handpiece

Same size as the RX-80GAS.

Fastest in Its Class

Reaches 350°C in only 14 seconds. (Only 6 seconds when using RX-80HRT tips.)

Excellent Heat Recovery (PAT.)

Excellent heat recovery has been achieved by combining a 150W compact high-output heater with a high-sensitivity sensor.

Product Specifications

Specifications

Model RX-852AS
Voltage 110–120V, 220–240V AC 50/60Hz
Power Consumption 145–170W
Power Cord Length 1.5m inlet type
Temperature Setting Range 50–450°C
Ripple temperature ±5˚C (unloaded)
Insulation Resistance  Over 100MΩ (500V DC)
Accessories Soldering Iron Stand (ST-21)

Control Unit

Output Voltage 24V AC
Dimensions   116(W) × 105(H) × 194(D)mm
Weight  4.8kg

Soldering Unit

Voltage / Consumption 24V AC / 150W
Ground Resistance Less than 2Ω
Leak Voltage Less than 2mV
Heater Nichrome heater
Cord Length 1.5m
Length 174mm  (with RX-85HRT-5D)
Weight  39g  (with RX-85HRT-5D)

Equivalent to IPC/EIA J-STD-001C

*The length does not include the cord bushing. The weight does not include the cord.

Overall View of a Tip

RX-85HRT series Overall View

RX-80HRT series Overall View

RX-81HRT series Overall View

Replacement Tips

RX-85HRT-B
RX-85HRT-2BC
RX-85HRT-3BC
RX-85HRT-5BC
RX-85HRT-7BC
RX-85HRT-3D
RX-85HRT-5D
RX-85HRT-7D
RX-85HRT-6K
RX-85HSRT-B
RX-85HSRT-2BC
RX-85HSRT-3BC
RX-85HSRT-1.6D
RX-85HSRT-2.4D
RX-85HSRT-3.2D
RX-85HSRT-4.5K
RX-80HRT-B
RX-80HRT-2B
RX-80HRT-SB
RX-80HRT-LB
RX-80HRT-LBJ
RX-80HRT-BM
RX-80HRT-1BC
RX-80HRT-2.3BC
RX-80HRT-3BC
RX-80HRT-0.5C
RX-80HRT-1C
RX-80HRT-2C
RX-80HRT-2CF
RX-80HRT-2CD
RX-80HRT-3C
RX-80HRT-3CF
RX-80HRT-3CD
RX-80HRT-4C
RX-80HRT-4.7C
RX-80HRT-0.8D
RX-80HRT-1.2D
RX-80HRT-1.6D
RX-80HRT-2.4D
RX-80HRT-2.4SMD
RX-80HRT-3.2D
RX-80HRT-5.4D
RX-80HRT-3K
RX-80HRT-4.5K
RX-80HRT-4.5KH
RX-80HRT-5.5K
RX-81HRT-B
RX-81HRT-SB
RX-81HRT-0.6C
RX-81HRT-0.5D
RX-81HRT-SBJ
RX-81HRT-1.5K
