LEAD-FREE TEMPERATURE-CONTROLLED SOLDERING IRON (PAT.P)
PX-280

We put your station functions in your grip! Smart soldering iron with digital display. (Smart Iron®︎)

Package Contents Tip (PX-28RT-S2C)

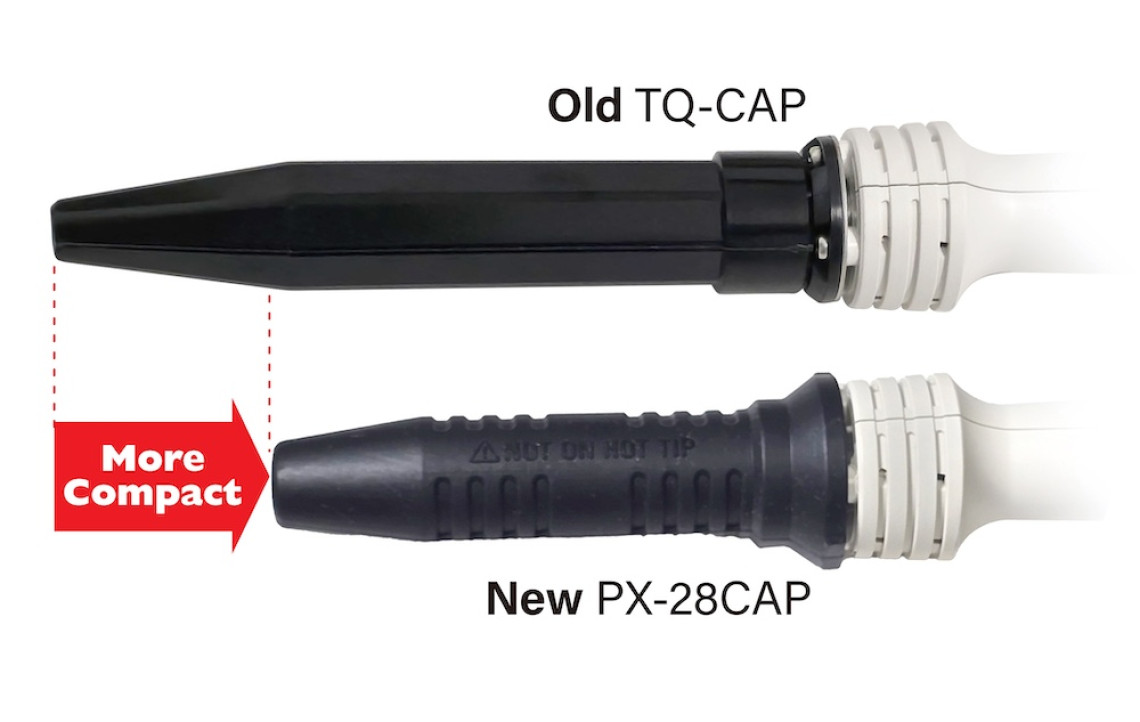

Heat-resistant Cap (TQ-CAP) is sold separately.

We Put Your Station Functions in Your Grip.

The functions of a soldering station condensed into a soldering iron.
This soldering iron is small and light, and has excellent heat-recovery.

SLEEP / SHUTDOWN functions extend soldering tip life, and avoid troubles from unplugging the iron.

[New] TEMP. Display on Soldering Iron

You can confirm the set temperature at a glance by digital display.
Temperature can be set in 1°C increments from 200°C to 500°C with the UP key and DOWN key.

LED HEAT lamp.

4 Smart Functions

KEY LOCK
Lock with password. No tools or cards necessary.



SLEEP
SLEEP and SHUTDOWN can be set by vibration sensor.
When iron is not used during preset time, it automatically lowers tip temperature to avoid tip-burn.
Sleeping frequently will greatly increase the life of the soldering tip.
(Image: Display when setting the sleep time)



SLEEP FUNCTION RELEASE
You can exit SLEEP mode by moving the grip.



SHUTDOWN
When the iron is not used during the preset time, it automatically shuts down.

Quick Heat

  • Reaches temperature in time comparable to that of middle-class soldering stations. Gets to 350°C in just 30 seconds with a standard tip.
  • With a high-power heater and sensor, there is almost no temperature fluctuation during heavy-duty continuous operation.
     Excellent heat recovery. Can be used for continuous soldering work at the manufacturing site.

Comfortable Grip with Excellent Workability

Comfortable, ergonomic grip.
The distance between the grip and the tip is short, making it easy to work with.

You can use any of our iron stands for ceramic-heater soldering iron.
- Soldering iron stands for ceramic-heater soldering irons: ST-27, ST-76, ST-77
- Soldering iron stands with solder reel holder: ST-53

Variety of Replacement Tips

Precision-manufactured in our own Hiroshima factory.

​Standard C-type, 2 mm dia. tip (PX-28RT-S2C).

Insert Nuts for Molded Resin Products * NEW TIPS

We have added four new tips!
Please set your temperature for your specific resin and insert nut.
The recommended temperature is +100°C from the melting point of the resin.

Model: PX-28T-NS, PX-28T-NL, PX-28T-NM3 (for insert nut M3), PX-28T-NM4 (for insert nut M4)

Calibration

Digitally calibrates the difference between the set temperature and the tip temperature as measured by tip thermometer.

Generally speaking, when measuring the tip temperature of the PX-280 with a tip thermometer, the measured temperature will usually be lower than the temperature displayed on the PX-280. This could be because once the tip thermometer comes into contact with the PX-280 soldering tip, the metallic parts in the thermometer conduct heat away from the PX-280 tip.For this reason, please use the calibration function only if you use the tip thermometer as the standard calibration tool for your soldering iron.

Product Specifications

Model PX-280 PX-280 (3-prong plug)
Voltage 100V, 110-120V, 220-240V AC 50/60Hz
Power Consumption 80W (100V), 100-120W (110-120V), 50W (220-240V)
Temperature Setting Range 200 - 500°C
Ripple Temperature ±5°C (unloaded)
Ground Resistance 2Ω or less
Leak Voltage Less than 2 mV
Insulation Resistance 100 MΩ or more (500 V DC)
Heater Ceramic heater
Power Cord Length/Plug 1.5 m 1.5 m (3 core cord with ground pin)
Length / Weight 219mm / 70g
Accessories Soldering Iron Tip (PX-28RT-S2C)

*The length does not include the cord bushing. The weight does not include the cord.

Overall View of a Tip

PX-28RT series Overall View

Standard Tips

PX-28RT-S2C

Replacement Tips

PX-28RT-S2CF
PX-28RT-B
PX-28RT-SB
PX-28RT-1BC
PX-28RT-2.3BC
PX-28RT-3BC
PX-28RT-3BCF
PX-28RT-4BC
PX-28RT-4BCF
PX-28RT-1C
PX-28RT-1CF
PX-28RT-5C
PX-28RT-1.6D
PX-28RT-2.4D
PX-28RT-3.2D
PX-28RT-5D
PX-28RT-3K
PX-28RT-5K
PX-28T-NL
PX-28T-NS
PX-28T-NM3
PX-28T-NM4
