TEMPERATURE-CONTROLLED SOLDERING IRON
PX-211

The temperature can be set from 200 to 500˚C. (Heat-resistant cap included)

Package Contents	Tip Heat-resistant Cap(PX-28CAP)

Features

Specifications

Replacement Tips

Replacement Parts

Tip temperature controlled accurately

The tip temperature can be accurately controlled by a ceramic heater with integrated sensor.

- 80W high power heater.

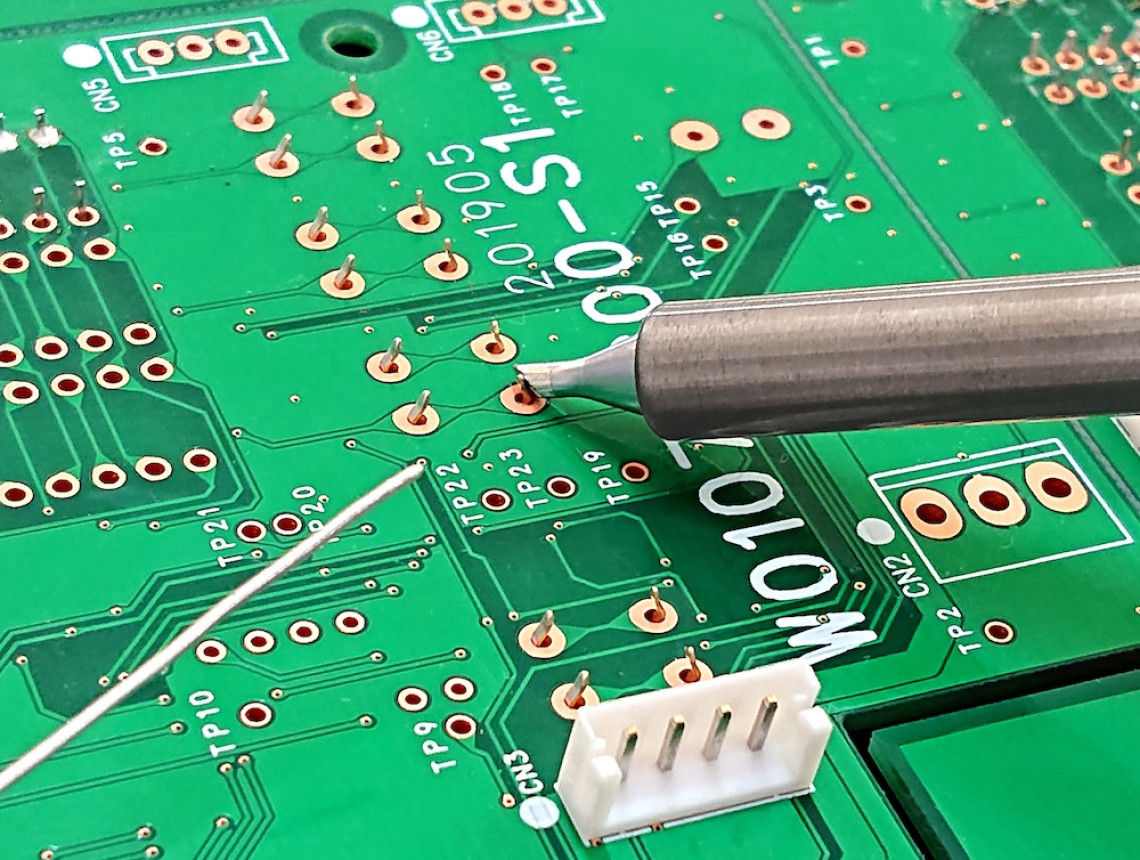

- Good for soldering of electric components.

From hobby use to professional use.

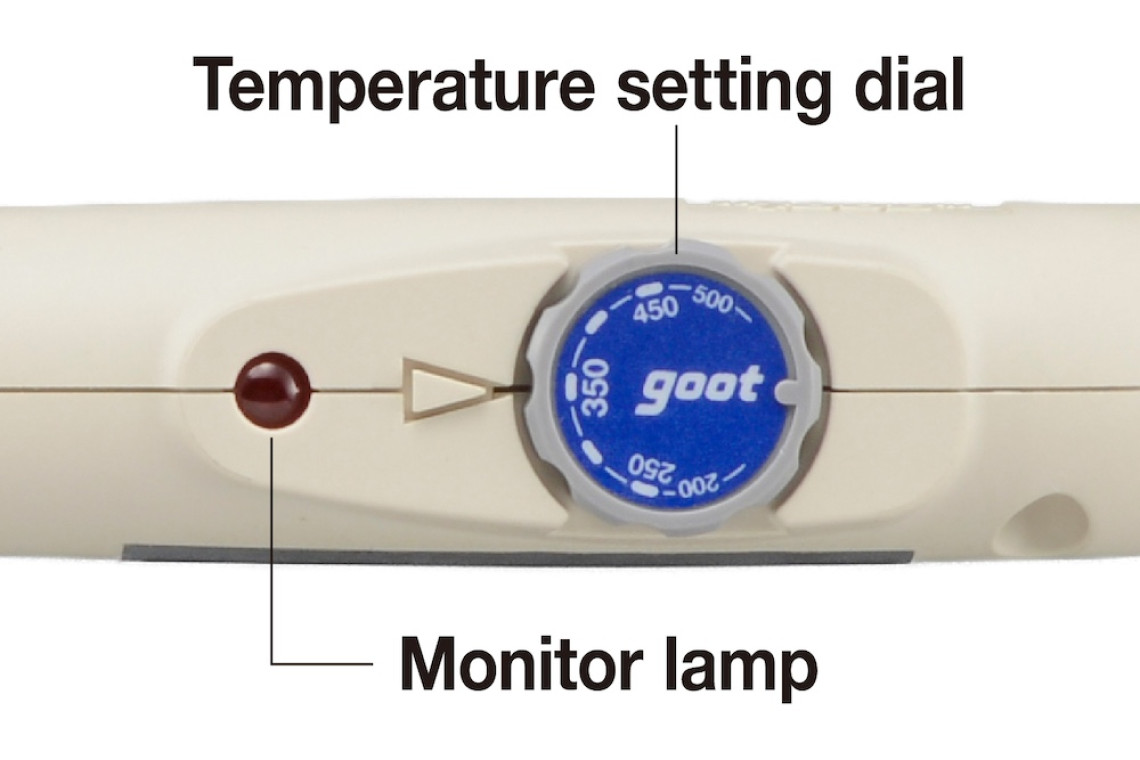

Easy Operation with Temperature-adjusting Dial

The temperature can be variably set from 200 to 500˚C.
Control tip temperature by adjusting the dial.
Monitor lamp

Comfortable Grip

Newly-designed grip. Slim and comfortable.
Can be used with our soldering iron stands for ceramic heater irons.

* Soldering Iron Stand: ST-27, ST-76, ST-77
* Solder Reel Holder: ST-53

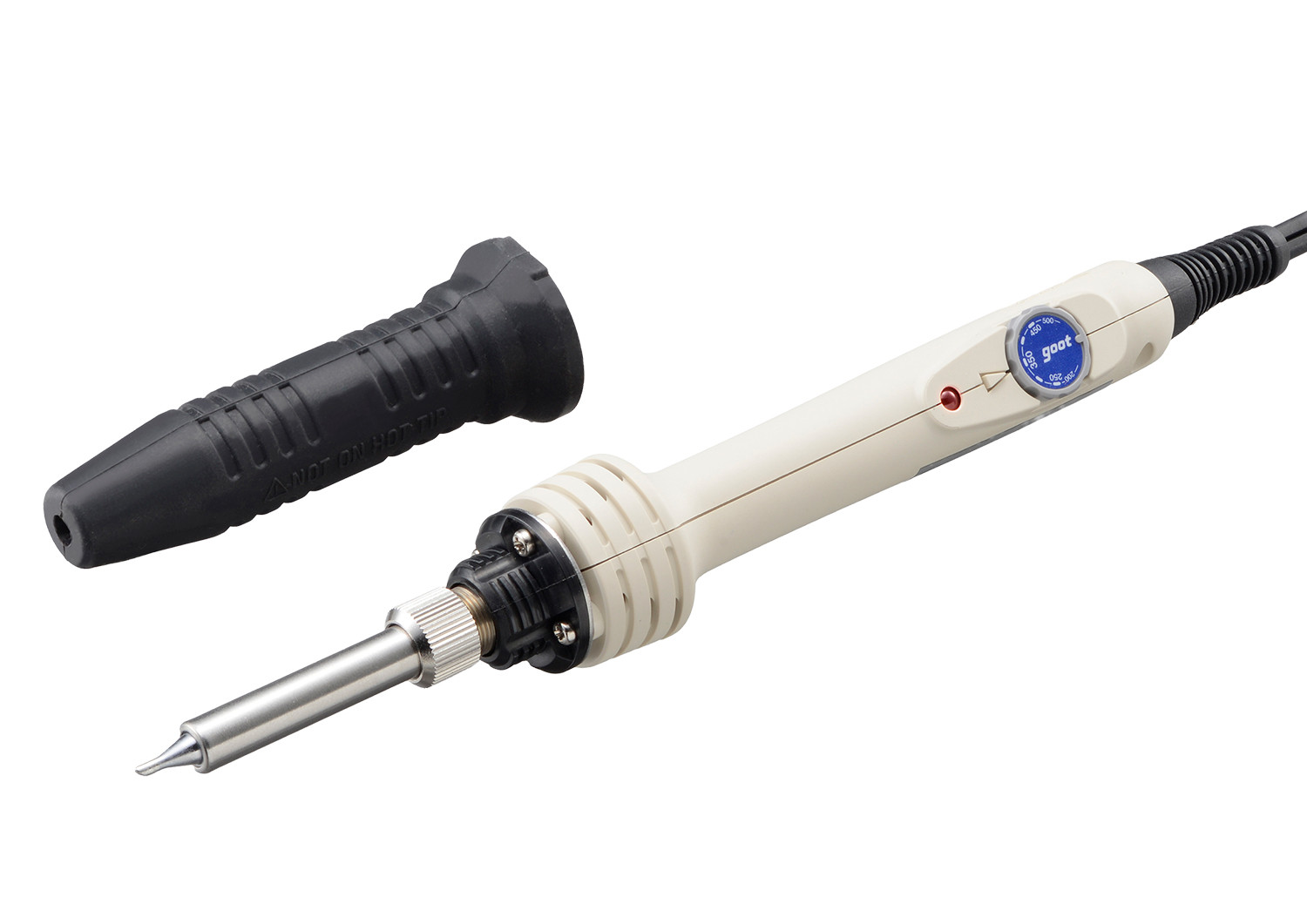

Heat-resistant Cap for Storage.

Comes with Heat-resistant Cap PX-28CAP.

- The heat-resistant rubber protects the metal parts around the tip.
- Can be stored more compactly than our TQ-CAP.
- Easy to attach/detach, just push or pull.

Material: Heat-resistant rubber
Heat-resistant temp.: 200°C

Replacement Tips (PX-28RT series)

Please use our replacement tips in our PX-28RT series. Standard tip is PX-28RT-B.

All PX-28RT tips are manufactured in our Hiroshima factory.

For Insert Nuts

6 models of Insert Nut Tip! (NOT for soldering)

Change the set temp. for your resin type and shape, and the size of the insert nut. Recommended temp. is resin's melting point plus 100°C.

Product Specifications

Model	PX-211
Voltage	110–120V AC 50/60Hz
Voltage	220–240V AC 50/60Hz
Power Consumption Setting Range	85–100W
Temperature Setting Range	200–500℃
Ripple Temperature	±5℃ (unloaded)
Insulation Resistance	Over 100MΩ (500V DC)
Heater	Ceramic Heater
Power Cord Length	1.5m
Length	197mm
Weight (w/o cord)	67g
Accessories	Soldering Iron Tip Heat-resistant Cap (PX-28CAP)
