N2 STATION

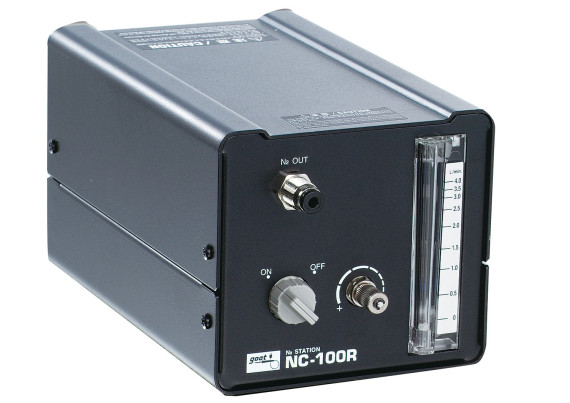

NC-100R
A compact N2 station combining N2 generator and controller.
| Package Contents |
|---|
Solder pictured is not included with this FD-120.
A compact N2 station combining N2 generator and controller.
- Maintains a stable output pressure(0.2Mpa). Two-tiered setting with RX-802ASPH achieves efficient work in smaller space.
NITROGEN GENERATION DENSITY
Product Specifications
| Model | NC-100R |
| Input pressure | 0.3-0.7MPa |
| Input temperature | 5-50℃ |
| Nitrogen generation density | Maximum 99.5% (0.7 MPa, 0.5L / min) |
| Recommended Nitrogen generation flow rate | 1.0L / min |
| Flow meter | 0.5-4.0L / min |
| Dimensions | 118 (W) × 112 (H) × 185 (D) mm (not including protruding parts) |
| Weight | 2kg |
| Required Hose Dimension | Input: Outer diameter ø6 mm |
| Output : Outer diameter ø4 mm |
