TEMPERATURE-CONTROLLED, LEAD-FREE, DUAL-PORT SOLDERING STATION
RX-822AS

2 soldering irons can be used.

Package Contents

Tip is not included.NOTE: Two RX-85GAS (150W) irons cannot be used together.

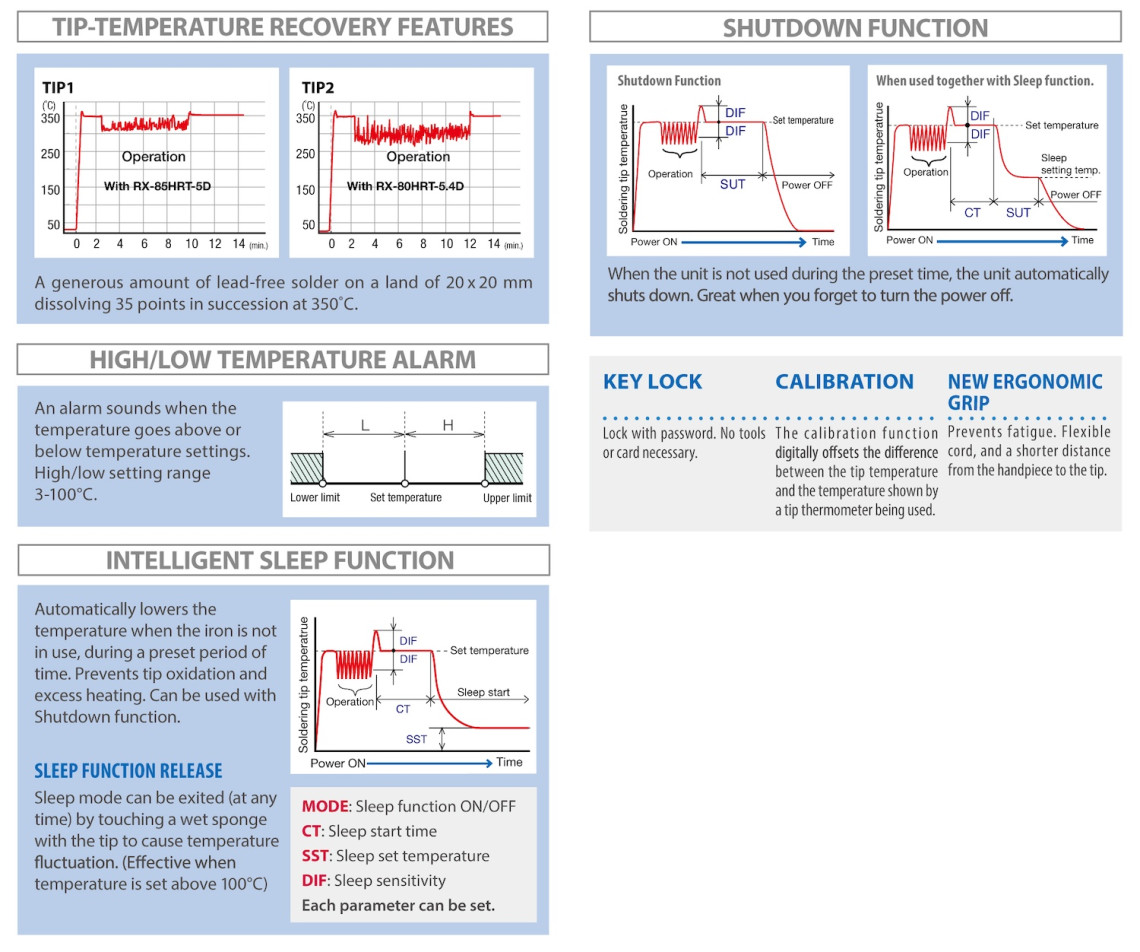

Tip-Temperature Recovery Features

Handpiece Grip Rubber

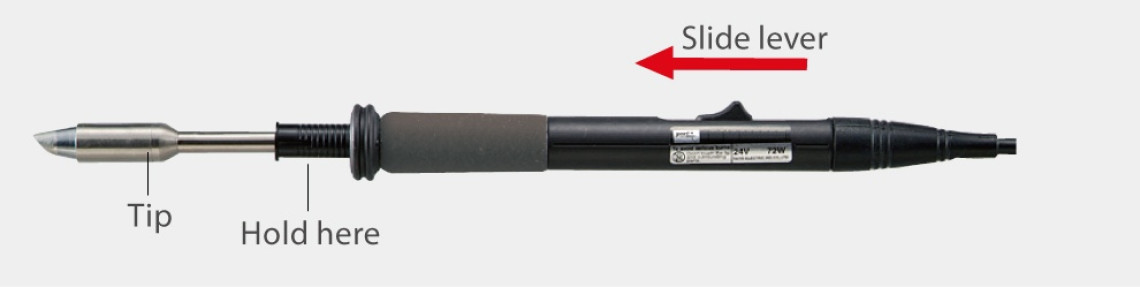

Slide the lever in the direction of the arrow. The tip will come out. Hold and pull the plastic housing of the tip.

More than 40 tips are available.

Easy to replace a hot tip without any other tools. Good for long hours of work with light, well-insulated structure.

Equipped with intelligent functions (sleep, sleep release, shutdown and Key lock) based on the RX-802AS.

Allows you to rework chip parts using 2 tips at a time.

Independent displays make settings clear.

Can be prepared with 2 soldering irons. Allows different types of work [such as micro soldering / high power work (150W)] at the same time.

Specifications

Control Unit

Soldering Unit

Voltage/Consumption		Soldering Unit1 (RX-85GAS) : 24V AC / 72W·150W
Voltage/Consumption		Soldering Unit2 (RX-80GAS) : 24V AC / 72W
Ground Resistance		Less than 2Ω
Leak Voltage		Less than 2mV
Heater		Nichrome heater
Cord Length		Soldering Unit1 :1.5m, Soldering Unit2 : 1.2m
Length	RX-85GAS	174mm (with RX-85HRT-5D)
Length	RX-80GAS	158mm (with RX-80HRT-B)
Weight	RX-85GAS	39g (with RX-85HRT-5D)
Weight	RX-80GAS	28g (with RX-80HRT-B)
