• RoHS2
  • LEAD FREE
  • CE

TEMPERATURE-CONTROLLED LEAD-FREE NITROGEN SOLDERING STATION
RX-802ASPH

Nitrogen improves solder wetting and fillet shape.

Package Contents Station Unit, Soldering Iron (RX-80GASPH / Tip is not included), Soldering Iron Stands (ST-22) Brass Wool & Sponges included, Tip changing tool(RX-80PHC)

Tip is not included.

Improving Lead-free Soldering

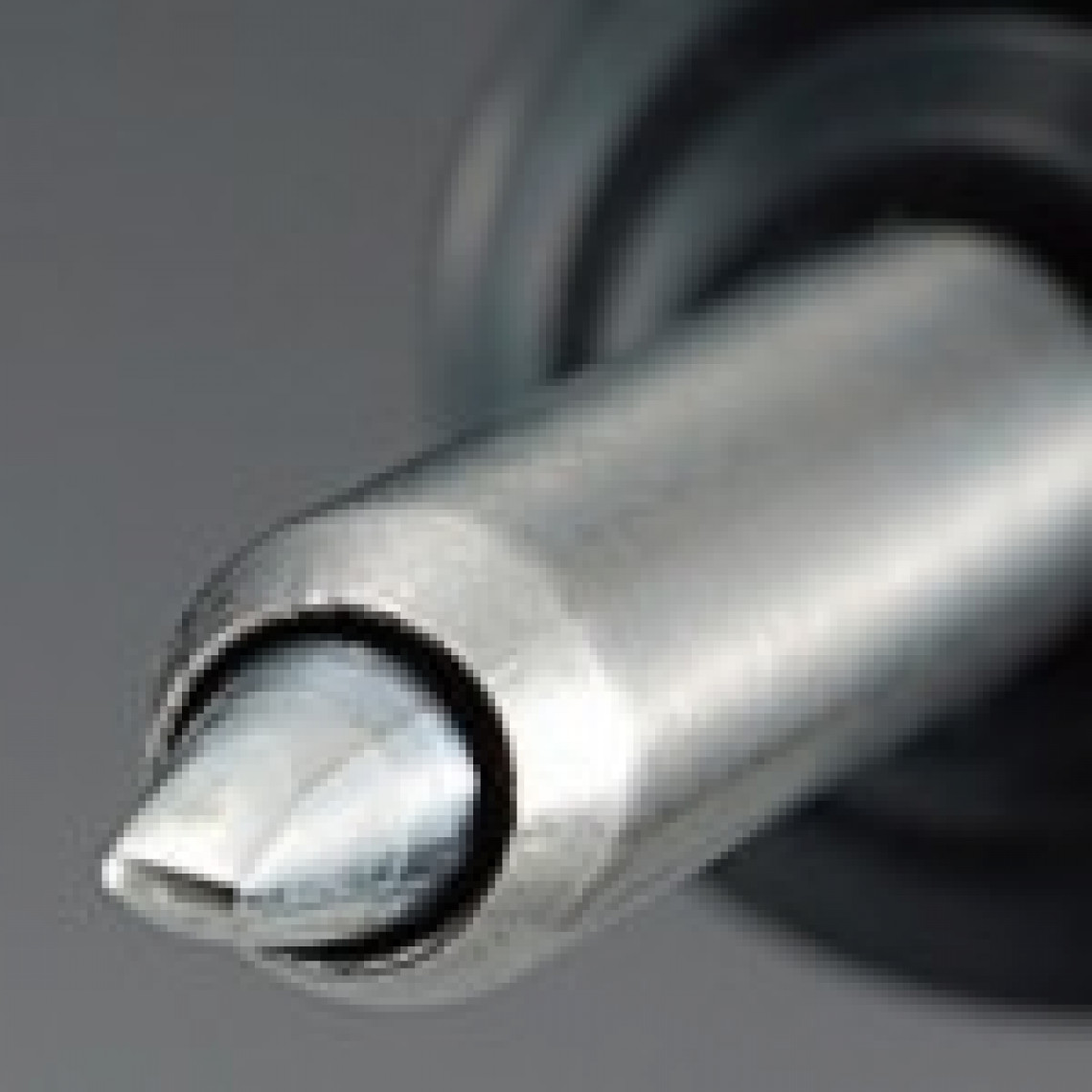

All-in-one N2 Nozzle Tips (PAT.)

Each RX-80HRT tip is euipped with a slim N2 nozzle.
φ6.4mm slim N2 nozzles. Get into small spaces easily.

Special Tool for Easy Tip Replacement

Comes with a handy tool to change a hot tip easily.
Slide the lever in the direction of the arrow. The tip will come out. Hold and pull the plastic housing of the tip.

Flexible N2 Induction Tube

Super-flexible. Allows free maneuvering of handpiece.

Light and Easy-to-use Handpiece

Handpiece weighs only 33g. So light it’s hard to believe it’s for a Nitrogen station!

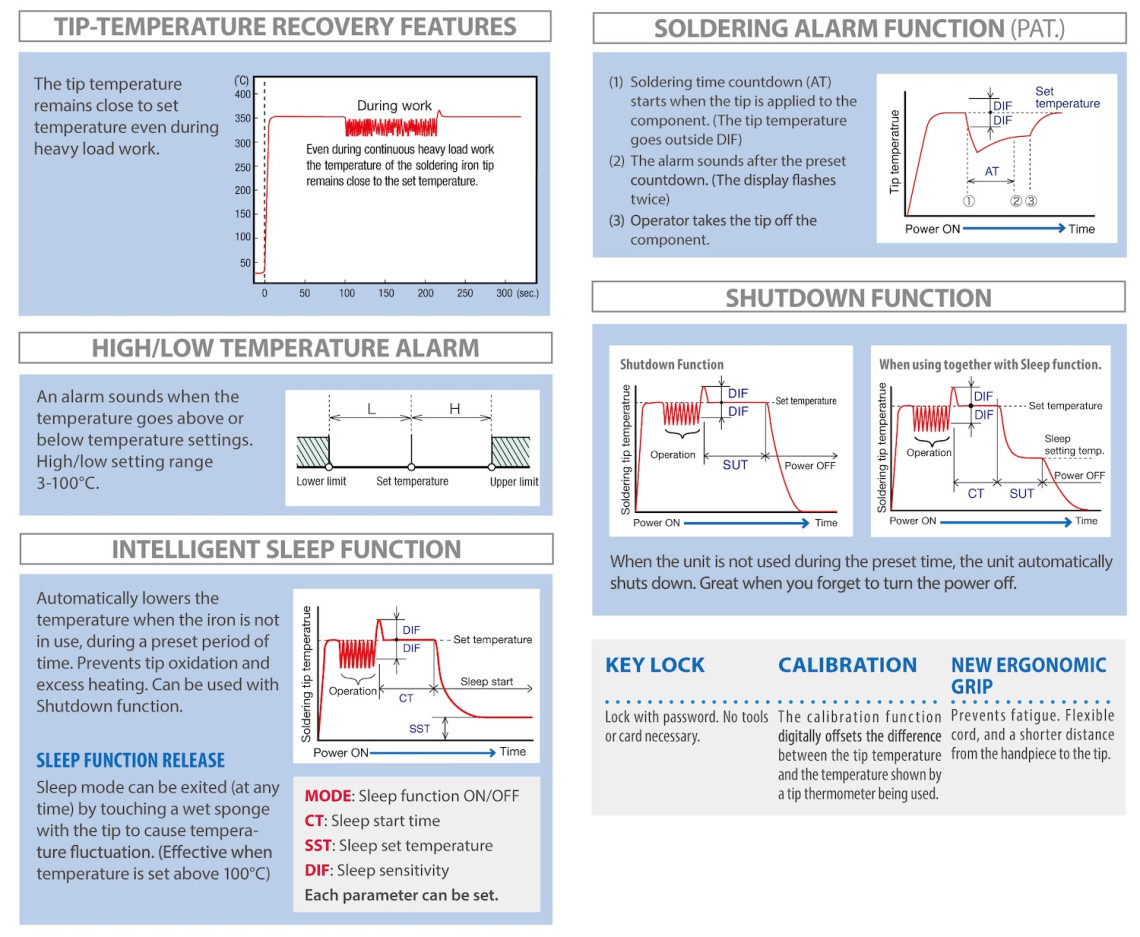

Functions (RX-802AS)

Product Specifications

Specifications

Model RX-802ASPH
Voltage 110V,120V,130V,220V,230V,240V AC 50/60Hz
Power Consumption 80W
Power Cord Length 1.2m (3 core cord) ground plug
Temperature Setting Range 50–450°C
Ripple temperature ±5˚C (unloaded)
Insulation Resistance  100MΩ (500V DC)
Accessories Iron Unit (RX-80GASPH)
Soldering Iron Stand (ST-22)

Control Unit

Output Voltage 24V AC
Dimensions   115(W) × 98(H) × 146(D)mm
Weight  1.8kg

Soldering Unit

Voltage / Consumption 24V AC / 72W
Ground Resistance Less than 2Ω
Leak Voltage Less than 2mV
Heater Nichrome heater
Cord Length 1.2m
Length 158mm (with RX-80HRT-PHB)
Gas Supply Pressure 0.2MPa(2kgf/cm2)
Weight  33g (with RX-80HRT-PHB)

Equivalent to IPC/EIA J-STD-001C

*The length does not include the cord bushing. The weight does not include the cord.

Replacement Tips

RX-80HRT-PHB
RX-80HRT-PH2B
RX-80HRT-PHSB
RX-80HRT-PHLB
RX-80HRT-PHLBJ
RX-80HRT-PHBM
RX-80HRT-PH1BC
RX-80HRT-PH2.3BC
RX-80HRT-PH3BC
RX-80HRT-PH0.5C
RX-80HRT-PH1C
RX-80HRT-PH2C
RX-80HRT-PH2CD
RX-80HRT-PH3C
RX-80HRT-PH3CD
RX-80HRT-PH4C
RX-80HRT-PH4.7C
RX-80HRT-PH0.8D
RX-80HRT-PH1.2D
RX-80HRT-PH1.6D
RX-80HRT-PH2.4D
RX-80HRT-PH3.2D
RX-80HRT-PH5.4D
RX-80HRT-PH3K
RX-80HRT-PH4.5K
RX-80HRT-PH4.5KH
RX-80HRT-B
RX-80HRT-2B
RX-80HRT-SB
RX-80HRT-LB
RX-80HRT-LBJ
RX-80HRT-BM
RX-80HRT-1BC
RX-80HRT-2.3BC
RX-80HRT-3BC
RX-80HRT-0.5C
RX-80HRT-1C
RX-80HRT-2C
RX-80HRT-2CF
RX-80HRT-2CD
RX-80HRT-3C
RX-80HRT-3CF
RX-80HRT-3CD
RX-80HRT-4C
RX-80HRT-4.7C
RX-80HRT-0.8D
RX-80HRT-1.2D
RX-80HRT-1.6D
RX-80HRT-2.4D
RX-80HRT-3.2D
RX-80HRT-5.4D
RX-80HRT-3K
RX-80HRT-4.5K
RX-80HRT-4.5KH
RX-80HRT-5.5K
RX-81HRT-B
RX-81HRT-SB
RX-81HRT-0.6C
RX-81HRT-0.5D
RX-81HRT-SBJ
RX-81HRT-1.5K
