SOLDERING TESTER
TM-200

Measure quickly. Shorten your routine.

Package Contents	Sensor 3 pcs (TM-100S) Grounding Lead Grounding Connection Lead Conversion Adapter Power Cord

Calibration certificate not included. Please request with order. (Paid service.)

Features

Specifications

Replacement Tips

Replacement Parts

Multi-purpose Soldering Iron Tester

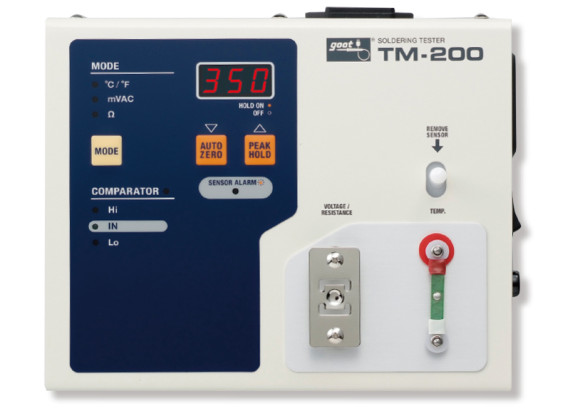

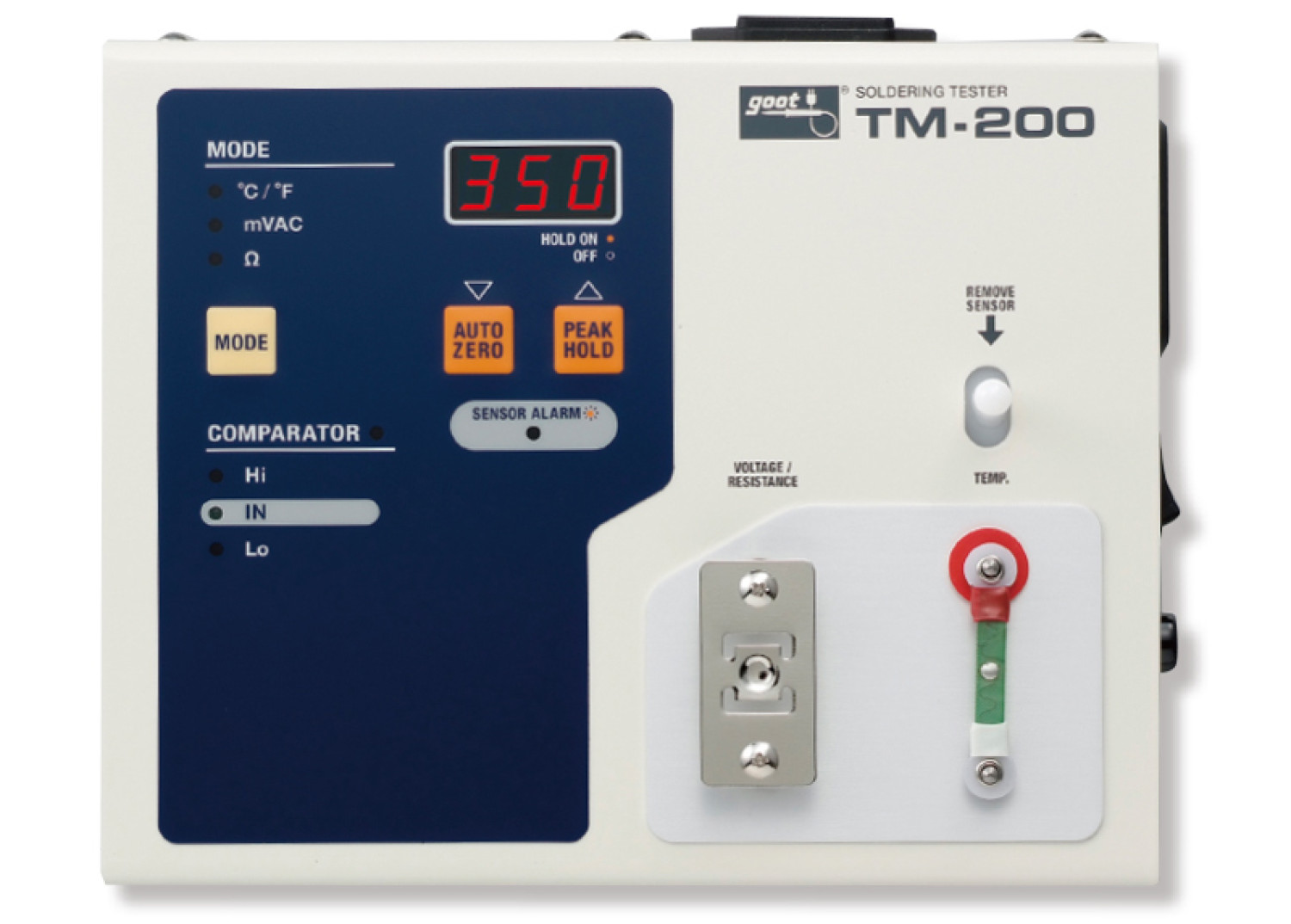

ONE Multi-Tester measures tip temperature, leak voltage, and tip-to-ground resistance of soldering irons.

Measures Tip Temperature Accurately in Seconds

Wide temperature range 0-700°C (1292°F), as is necessary for soldering work. Tolerance stays in the range of +/-0.5% of the full scale (excluding sensor error).

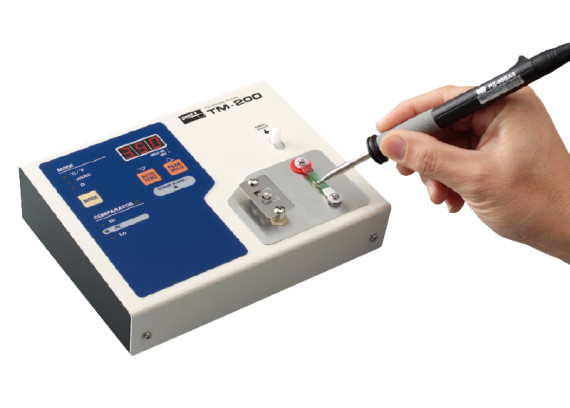

Sensor’s structure makes easy tip placement. Stable & accurate measuring in seconds, regardless of shape, or angle of tip.
Sensor is easily replaced.

*0-700°C is the range with (optional) sensor probe TM-100SP. With the standard sensor TM-100S, measurable 0-500°C (932˚F)

Comparator Function

This function automatically judges pass/fail from the measured values. You can check your iron’s standards without seeing the displayed value.
If the measured value is within the preset upper/lower limits, the green lamp lights + buzzer sounds. If the value is outside the range, the red lamp lights.

Indicated Value Hold Function (It functions to hold at the peak temperature for temperature measurement.)

Indicated value hold function allows the displayed value to be held for easy reading, e.g. when writing measured values on data sheets, etc.

Auto Zero Function

Resets leakage voltage and ground resistance when there are zero point errors due to changes caused by temperature, aging, etc.

Sensor-life Counter Alarm Tells You When to Replace Sensor

The damage value of the sensor is integrated. When the set value is reached, the sensor alarm lamp notifies you that the sensor should be replaced.

International Standard! JCSS Inspection Calibration is Available

JCSS inspection calibration is available as an option (for fee) in addition to manufacturer calibration (for fee).
JCSS Calibration Compliant Content: Complies with ISO/IEC 17025, ISO 9000s, IATF 16949, etc.
Can issue a calibration certificate with JCSS-certified symbol for international MRA.
*Measurement of earth resistance is not certified by JCSS calibration.

Product Specifications

Model		TM-200
Voltage		100-240V AC 50/60Hz
Power Consumption		2.7W
Input Current		7A
Sensor		TM-100S (standard) TM-100SP (optional parts)
Dimensions		185(W) × 58(H) × 160(D)mm (w/o cord)
Weight		Approx. 1kg (w/o cord)
Temperature	Resolution	1°C
	Measuring Range	Sensor TM-100S: 0-500°C(32-932°F) Probe TM-100SP: 0-700°C(32-1292°F)
	Accuracy	0-500°C : ±3° 501-700°C : ± 4°C
Voltage	Resolution	0-99.9mV: 0.1mV 100-200mV: 1mV (auto range)
	Measuring Range	0-200mV
	Accuracy	±(5% of reading value + 1dgt)
Resistance	Resolution	0-99.9Ω : 0.1Ω 100-200Ω : 1Ω
	Measuring Range	0-200Ω
	Accuracy	± (5% of reading value + 1dgt)
Operating Environment		0-40°C, 20-85%RH (no condensation)
Accessories		Sensor 3pcs, Earth connecting lead, Fuse, Power Cord
