LEAD-FREE MINI SOLDERING STATION
PX-580

Smart Iron Series. Compact, high-performance, high-power mini-station with digital display.

Package Contents	Station Unit Soldering Iron (PX-28RT-S2C included)

Features

Specifications

Replacement Tips

Replacement Parts

Compact, High-performance, High-power!

・This high-performance lead-free soldering iron has excellent heat-recovery.
・Mini-station is space saving. It takes up very little space.
・The compact, both-handed iron unit and flexible cable for easy handling improve workability.
・SLEEP/SHUTDOWN function gives much longer tip life!

Digital Display in 1°C Increments

You can confirm the set temperature at a glance by digital display.
Temperature can be set in 1°C increments from 200°C to 500°C with the UP key and DOWN key.
LED HEAT lamp.

Quick Startup and Excellent Heat Recovery

The high-power ceramic heater takes about 30 seconds to reach the set temperature of 350°C. (when using a standard soldering iron tip)
With a high-power heater and sensor, there is almost no temperature fluctuation during heavy-duty continuous operation.

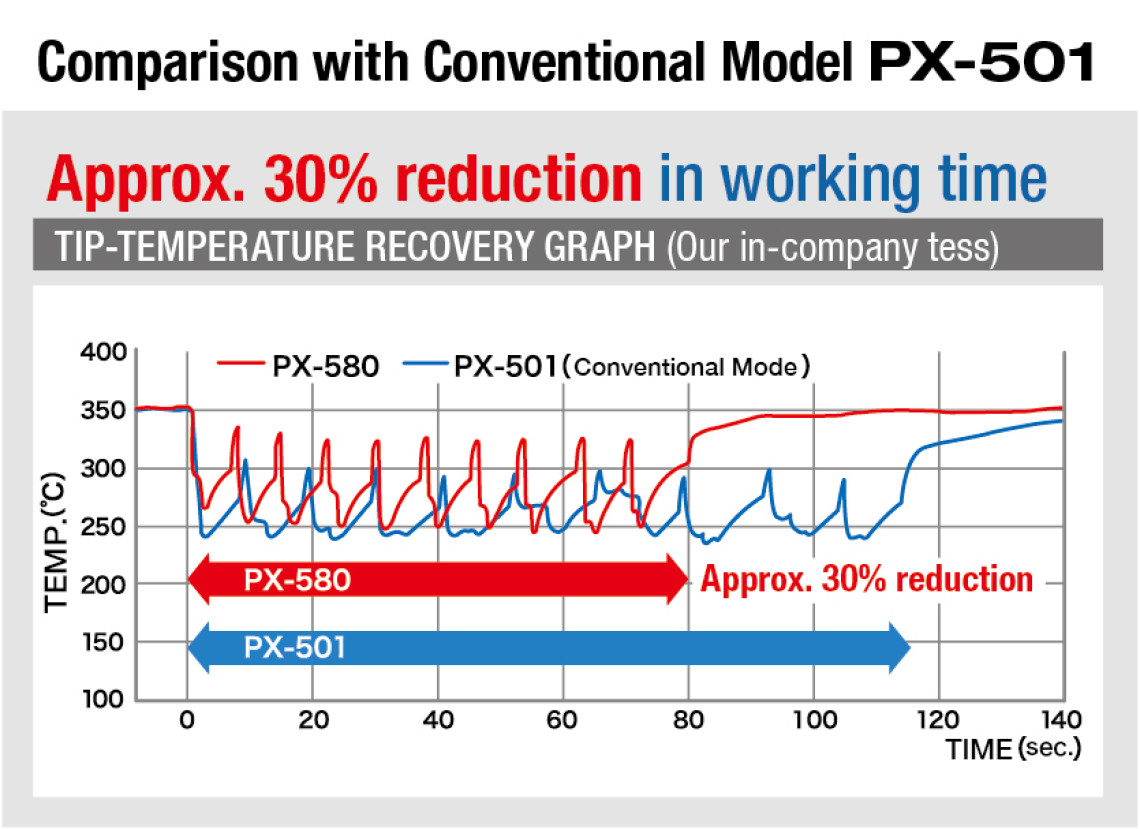

Work time has been reduced by approx. 30% compared to the conventional model PX-501 (Compared with our company).

Smart Functions for Safe, Secure Soldering

SLEEP

When iron is not used during preset time, it automatically lowers tip temperature to avoid tip-burn.
Sleeping frequently will greatly increase the life of the soldering tip.
Can be used with SHUTDOWN function.

SLEEP FUNCTION RELEASE

You can exit SLEEP mode by moving the grip.

SHUTDOWN

When the iron is not used during the preset time, it automatically shuts down.
Temperature is displayed as temperature drops.
Saves electricity, and prevents accidents.
*To use it again, press any button or turn the power switch ON again.

KEY LOCK

Lock with password. No tools or cards necessary.
This function locks data settings by entering the PIN code. Unauthorized personnel cannot make changes.

Calibration

Digitally calibrates the difference between the set temperature and the tip temperature as measured by tip thermometer.

Variety of Replacement Tips

Please use PX-28RT/PX-28T series as replacement tips.
Precision-manufactured and inspected in our own Hiroshima factory.

Insert Nuts for Molded Resin Products

Please set your temperature for your specific resin and insert nut.
The recommended temperature is +100°C from the melting point of the resin.

Changing the Tip

Unscrew the Collar to remove Barrel and Tip. Assemble in the reverse order.

〈CAUTION〉Before changing the tip, unplug the soldering iron, and wait until the tip and surrounding parts have cooled down.

〈CAUTION〉When replacing the soldering tip, make sure that the pipe inside has not come loose and stuck to the heater surface.
If the pipe is stuck, remove it. A stuck pipe may cause the heater to short-circuit and break down.

Changing the Heater

1. Loosen the adapter fixing screw using a screwdriver.
2. Slightly turn the adapter counterclockwise and remove it. Disconnect the two
connectors as in the picture.
3. Replace the heater and assemble by reversing the disassembly procedure.
4. We recommend that you do temperature calibration before use.

Recommended Soldering Iron Stand ST-27 (Sold separately)

・It weighs about 480 g and has a rubber sheet on the bottom to prevent it from falling over unexpectedly.
・The angle of the socket can be adjusted by loosening the screws on either side.
・Prevent burns. Tip is safely covered!
Please see ST-27 product web page for details.

Product Specifications

Model		PX-580
Voltage / Power Consumption		220–240V AC 50/60Hz ／ 100–120W
Temperature Setting Range		200－500℃
Ripple Temperature		±5℃ (unloaded)
Ground Resistance		2Ω or less
Leak Voltage		Less than 2mV
Insulation Resistance		100MΩ or more (500 V DC)
Heater		Ceramic heater
Size	Control Unit	100(W) × 60(H) × 85(D)mm
	Iron Unit	Overall Length 185mm
Weight	Control Unit	233g
	Iron Unit	49g
Cord Length of Iron Unit to Control Unit		1.2m
Power Cord Length		1.5m (3 core cord with ground pin)
Accessories		Soldering Iron Tip（PX-28RT-S2C）
