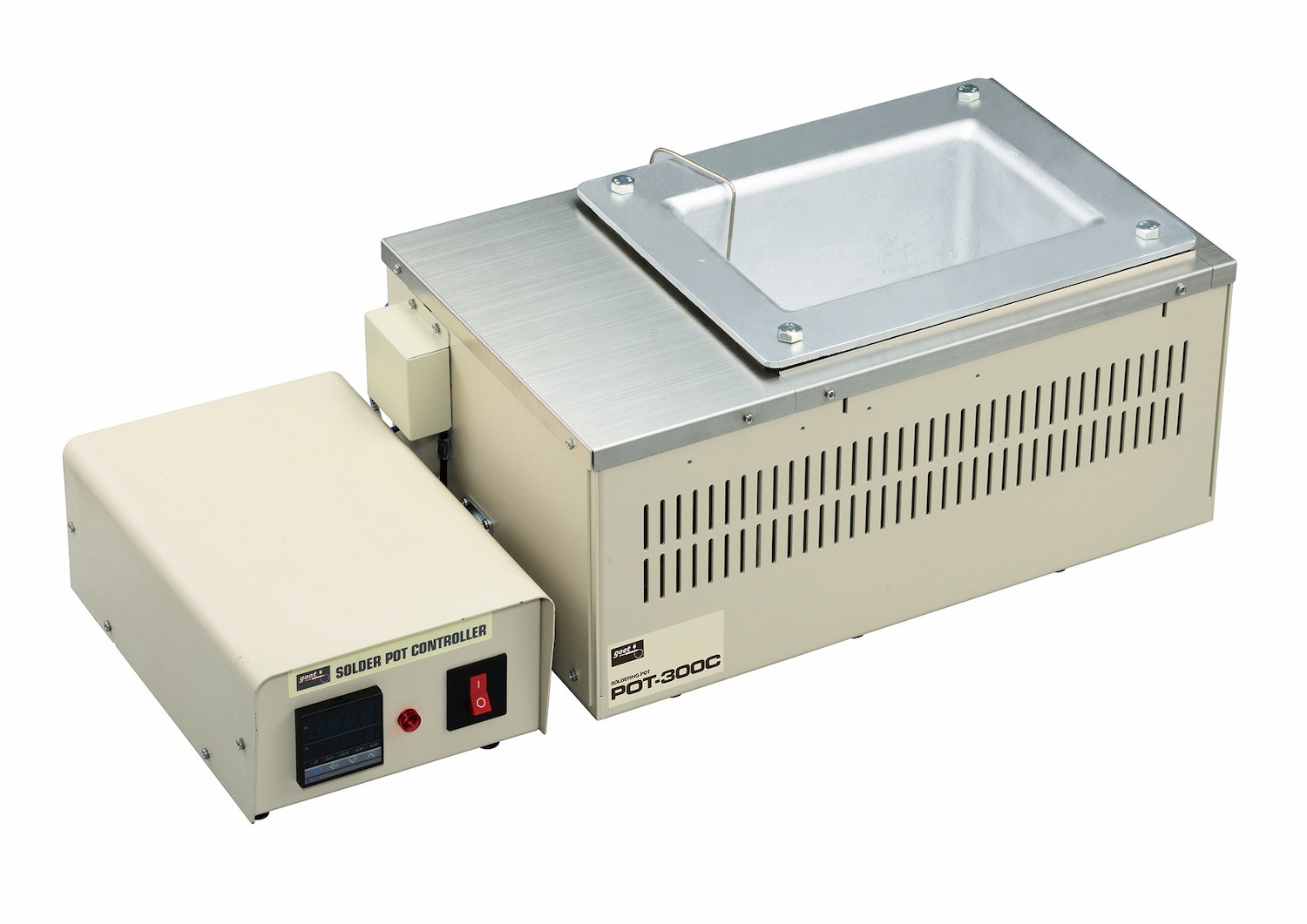

SOLDER POT [cast-iron bath]
POT-300C

Permits dipping of large items.

Package Contents	Solder Bath Control Unit Dross Tray Spatula

Features

Specifications

Replacement Tips

Replacement Parts

Cast-iron bath. Good for lead-free soldering.

・Permits dipping of large items (inner depth 110mm).
・Lead-free applicable bath. Longer life with a cast-iron bath.
・Dual digital display shows the set temperature and the measured temperature at the same time.
・Accurate PID temperature control. (sensor feedback ON/OFF control available)
・The difference between the solder temperature and the set temperature is minimized by PID control.
・Separation of the control unit and the solder pot allows easy setup and combinations with other devices.

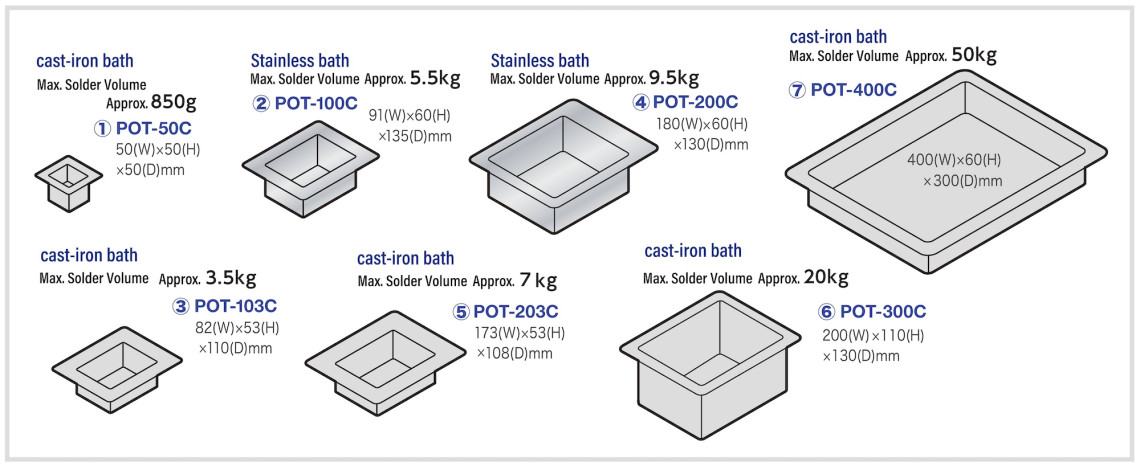

Bath size comparison

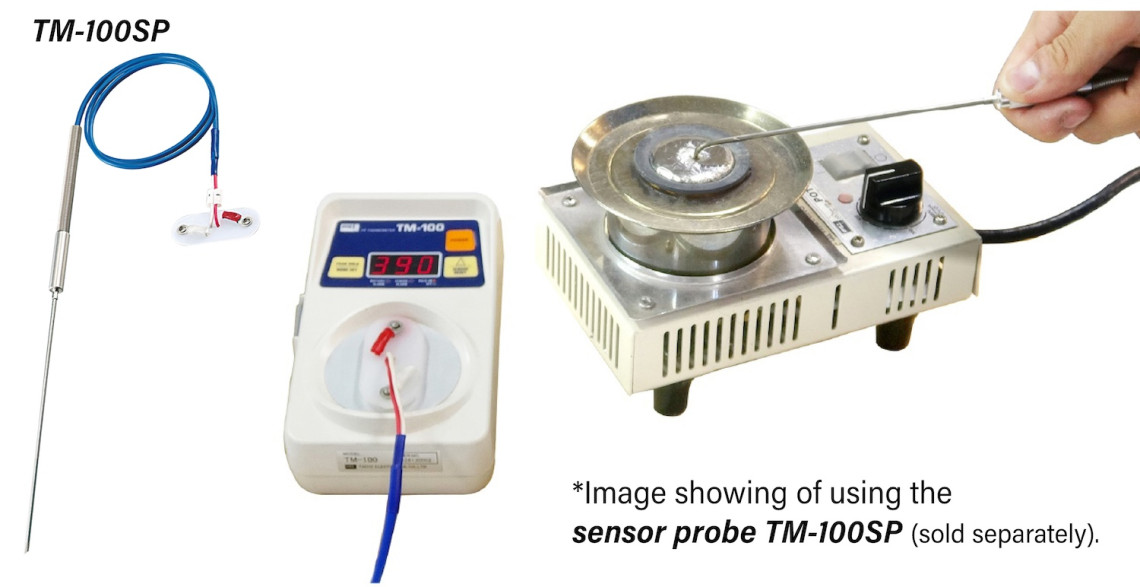

Need accurate temp. measuring?

TM-100 (tip thermometer) and TM-100SP (sensor probe) enable accurate measuring.
*Both TM-100 and TM-100SP sold separately.

Wide temperature range *0-700°C, as is necessary for soldering work. The tolerance stays in the range of ±0.5% of the full scale (excluding sensor error).

NOTE: 0-700°C is the range with (optional) sensor probe TM-100SP. With the standard sensor TM-100S, measurable 0-500°C.

Product Specifications

Model		POT-300C
Voltage		220–240V AC 50/60Hz
Power Consumption		2kW
Max. Temp.		400℃
Set Accuracy		±{(1.25% of display temperature)+1°C}
Heater		Sheath Heater
Control System		PID Control
Power Cord Length		3m
Solder Bath Material		Cast Iron
Max. Solder Volume		Approx. 20kg
Size	Bath Unit	415(W)×215(H)×257(D)mm
	Control Unit	175(W)×122(H)×260(D)mm
	Solder Bath	200(W)×110(H)×130(D)mm
	Weight	25kg
