SOLDER POT
POT-23C

Temperature control knob for optimal dipping.

Package Contents

NOTE: No sensor feedback system, so temperature may fluctuate +/- approx.10%.

Features

Specifications

Replacement Tips

Replacement Parts

Temperature control knob for optimal dipping.

Zero-cross control drastically reduces output noise (Time-proportioning system).
LED pilot lamp lights when heater is ON.
NOTE: No sensor feedback system, so temperature may fluctuate +/- approx.10%.

Accurately Measures Solder Temperature in Just a Few Seconds

TIP THERMOMETER TM-100 with (optional) Sensor probe TM-100SP

Wide temperature range 0-700°C (1292°F), as is necessary for soldering work.
The tolerance stays in the range of +/-0.5% of the full scale (excluding sensor error).

*0-700°C is the range with (optional) sensor probe TM-100SP.

Product Specifications

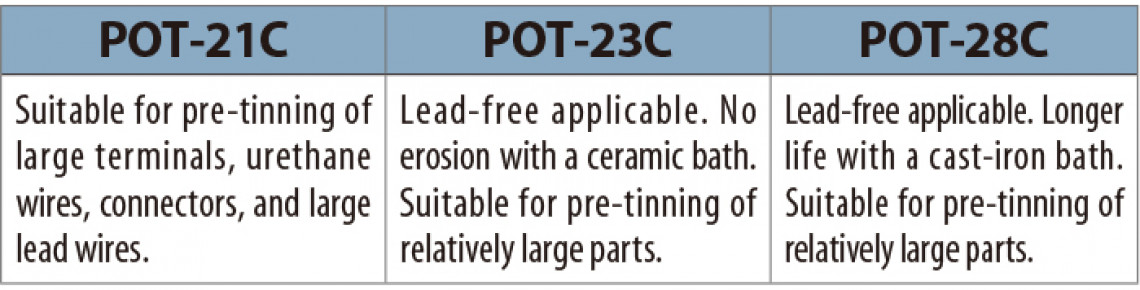

Model	POT-21C	POT-23C	POT-28C
Voltage	110V, 120V, 220V, 240V AC 50/60Hz
Power Consumption	130W
Bath Temperature	270−530˚C
Melting Time (at max. setting)	Approx. 10 mins.
Heater	Nichrome Heater
Control System	Time Proportioning Control
Power Cord	1.3m
Solder Bath Material	Stainless Steel	Ceramic	Cast Iron
Solder Capacity	Approx. 300g
Dimensions	90(W)×87(H)×150(D)mm	90(W)×91(H)×150(D)mm	90(W)×89(H)×150(D)mm
Internal Pot Dimensions	ø36 × 36(D) mm	ø31 × 39(D) mm	ø34 × 32(D) mm
Weight	720g		800g
