DIGITALLY CONTROLLED AUTOMATIC SOLDER FEEDER
FD-180
Manage solder feed length and soldering time digitally.
Can be interlocked with external equipment by External input / output function
| Package Contents | FD-180 Main Unit Touch Panel Solder Reel Shaft *Solder, iron unit, and optional parts with iron unit are not included. |
|---|
*FD-180G, V-groove unit, and Nozzle are sold separately. Solder in this image is also not included. (Temporary hold on new orders)
Separatable Main Unit and Touch-panel
Ideal for cell production and incorporation into automatic processes.
External Input / Output Terminals
For interlocking with Poka-Yoke jig
Solder-splash Prevention V-groove Function (Unit exchange type)
V-groove processing enables flux gasses to escape, reducing scattering of solder and flux which is a cause of defects.
Input Number by Touch Panel
Intuitive operation with touch panel is possible. You can manage solder feed length and soldering time digitally.
Product Specifications
| Model | FD-180 | |
|---|---|---|
| Power Supply Voltage | 100-240V AC 50/60Hz | |
| V-groove Function | Available | |
| Power Consumption | 20W | |
| Power Cord Length | 1.5m inlet type | |
| Applicable Solder Diameter | φ0.6, 0.8, 1.0, 1.2, 1.6 Allowing Lead-free | |
| Solder Feed Speed | 1-50mm/ sec | |
| Solder Feed Amount | 400mm (Max.) | |
| Reversed Solder Speed | 1-50mm/ sec | |
| Reversed Solder Amount | 30mm (Max. ) | |
| Program Capacity | Max. 30 programs | |
| Condition of Solder Feed | Max. 30 kinds per 1 program | |
| Language | Japanese / English / Chinese | |
| Size | Feeder Unit | 100 (W) × 270 (H) × 163 (D) mm |
| Touch Panel | 153 (W) × 125 (H) × 72 (D) mm | |
| Weight | Feeder Unit | 2.8kg (w/o cord) |
| Touch Panel | 1.0kg (w/o cord) | |
-

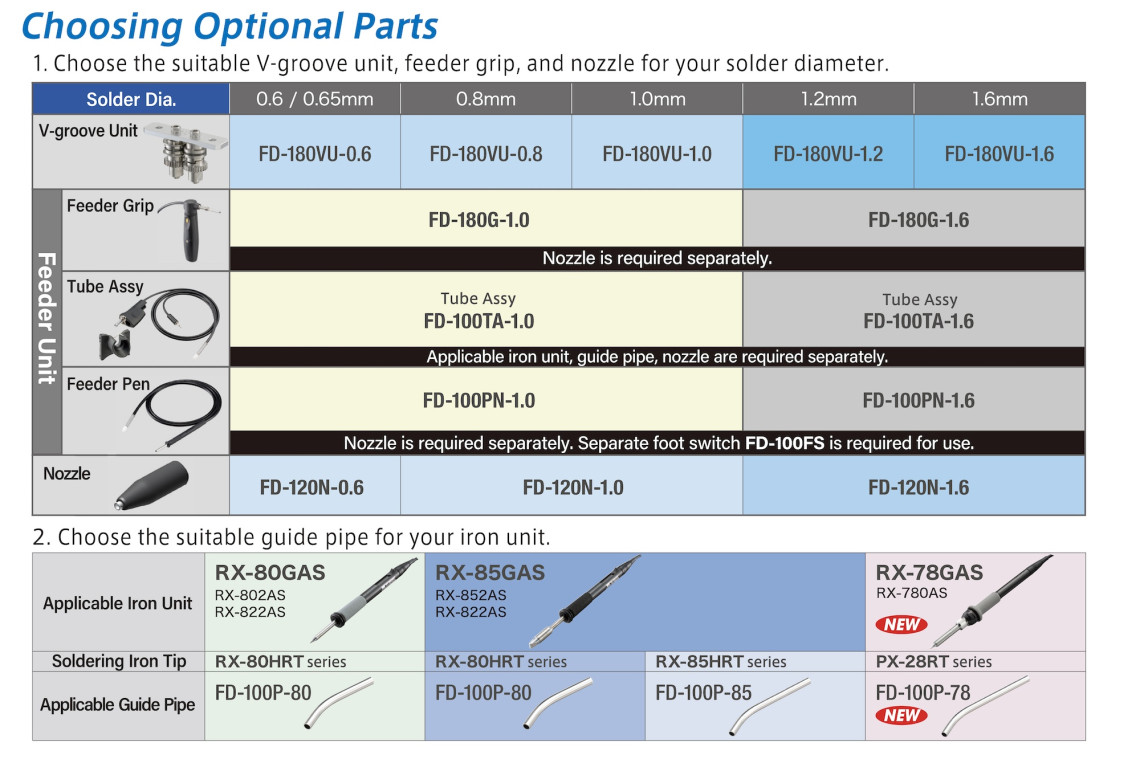

Feeder Grip ⌀1.2-1.6
FD-180G-1.6
-
Feeder Grip ⌀0.6-1.0
FD-180G-1.0
-
V-groove Unit ⌀1.6
Changeable V-groove Unit
FD-180VU-1.6
-
V-groove Unit ⌀1.2
Changeable V-groove Unit
FD-180VU-1.2
-
V-groove Unit ⌀1.0
Changeable V-groove Unit
FD-180VU-1.0
-
V-groove Unit ⌀0.8
Changeable V-groove Unit
FD-180VU-0.8
-
V-groove Unit ⌀0.6
Changeable V-groove Unit
FD-180VU-0.6
-
Tube Assy ⌀1.2-1.6
4.97521E+12
FD-100TA-1.6
-
Tube Assy ⌀0.6-1.0
FD-100TA-1.0
-
Feeder Pen ⌀1.2-1.6
Separate foot switch FD-100FS is required for use.
FD-100PN-1.6
-
Feeder Pen ⌀0.6-1.0
Separate foot switch FD-100FS is required for use.
FD-100PN-1.0
-
Nozzle ⌀0.6
FD-120N-0.6
-
Nozzle ⌀1.0
FD-120N-1.0
-
Nozzle ⌀1.6
FD-120N-1.6
