AUTOMATIC SOLDER FEEDER
FD-120

Easy to configure for other solder diameter with changeable V-groove Unit.

Package Contents

Solder pictured is not included with this FD-120.

Features

Specifications

Replacement Tips

Replacement Parts

V-groove unit differs according to solder diameter used. Please separately purchase the optional FD-180VU series with the corresponding solder diameter when purchasing FD-120.

Easy to configure for other solder diameter with changeable V-groove Unit.

One-handed soldering work possible. ON/OFF switch is built into the Tube Assy FD-100TA (sold separately).
⌀0.6-1.6 mm lead-free solder applicable.
Solder feed method for reducing solder clogs.

V-groove function

Grooved solder lets flux vapor be released. Reduces splash. Reduces defects.

Max ⌀1.6 Lead-free Solder Applicable

The low-friction tube makes it possible to use thicker solder.

Handpiece shaped for smooth solder flow

Innovative design means fewer clogs. Solder can be inserted in a straight line.

Compatible with your soldering unit

Compatible with your soldering unit for goot RX series soldering stations

Sample Configuration

This image is with optional parts. Solder, soldering unit, and other optional parts are not included with this FD-120.

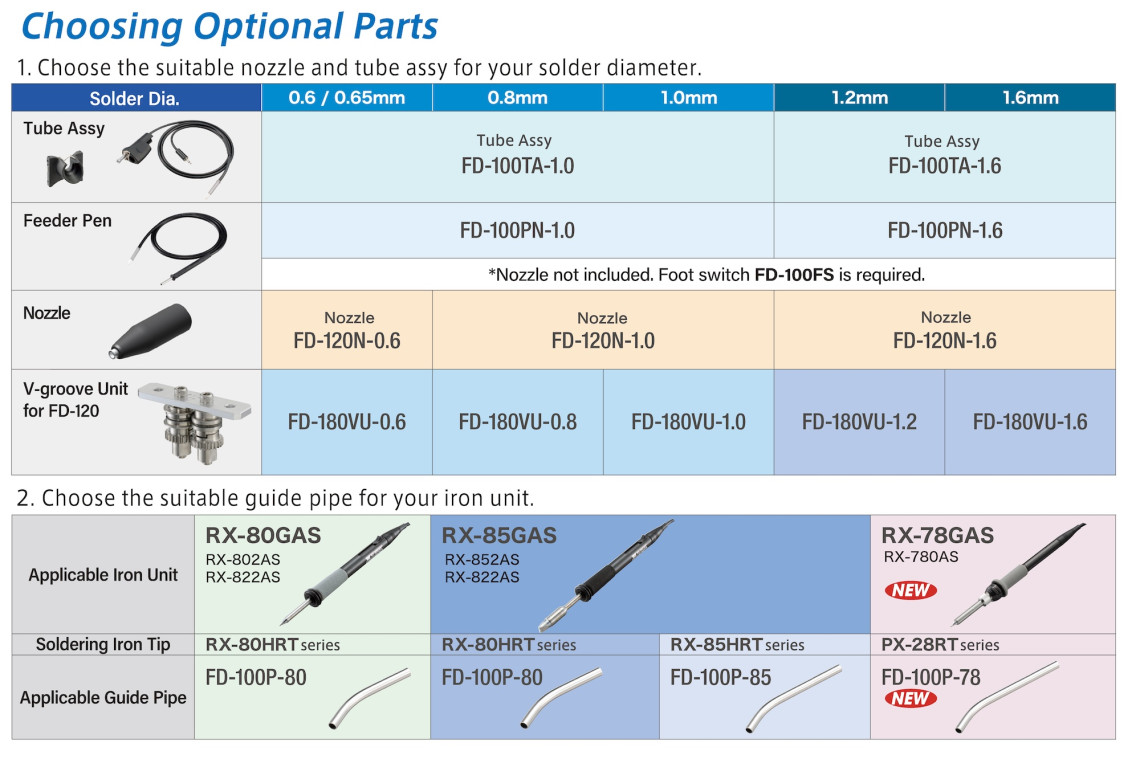

Choosing Optional Parts

Product Specifications

Model	FD-120
Voltage	100-240V AC 50/60Hz inlet type
Power Consumption	8W
Power Cord Length	1.5m
Applicable Soldering Irons	RX-802AS (RX-80GAS)
	RX-852AS (RX-85GAS)
	RX-822AS (RX-80/85GAS)
	RX-701/711AS (RX-72GAS)
Applicable Solder Diameter (mm)	φ0.6, φ0.8, φ1.0, φ1.2, φ1.6 mm
Solder Feed Speed (unloaded)	φ0.6φ0.8: 4-22 mm/s, φ1.0φ1.2: 3-20 mm/s, φ1.6: 0-16 mm/s
Solder Feed Time	0-4sec
Returned Solder Amount	0-5mm (fixed speed)
Dimensions	82 (W) × 150 (H) × 210 (D) mm
Weight	1.5kg (w/o cord)
