AUTOMATIC SOLDER FEEDER
FD-100

Dramatically reduces soldering time.

Package Contents	FD-100 Main Unit Solder Reel Shaft

Solder, Iron unit, and other optional parts are not included.

Features

Specifications

Replacement Tips

Replacement Parts

Constant Feed Volume. Higher Quality at Lower Cost.

-One-handed soldering work possible.
-ON/OFF switch is built into the Tube Assy FD-100TA (sold separately).
-ø0.6-1.6 mm lead-free solder applicable.
-Solder feed method for reducing solder clogs.

Max ø1.6 mm Lead-free Solder Applicable.

Solder feed method for reducing clogs. Solder can be inserted straight.

Can Be Attached to Most goot Iron Units.

Compatible with our soldering station RX series.
When attaching to an iron unit, please purchase FD-100TA (Tube Assy). Nozzle and Guide Pipe are also required (sold separately).

Sample Configuration

Image has optional parts. Solder, iron unit, and other optional parts are not included with this FD-100.

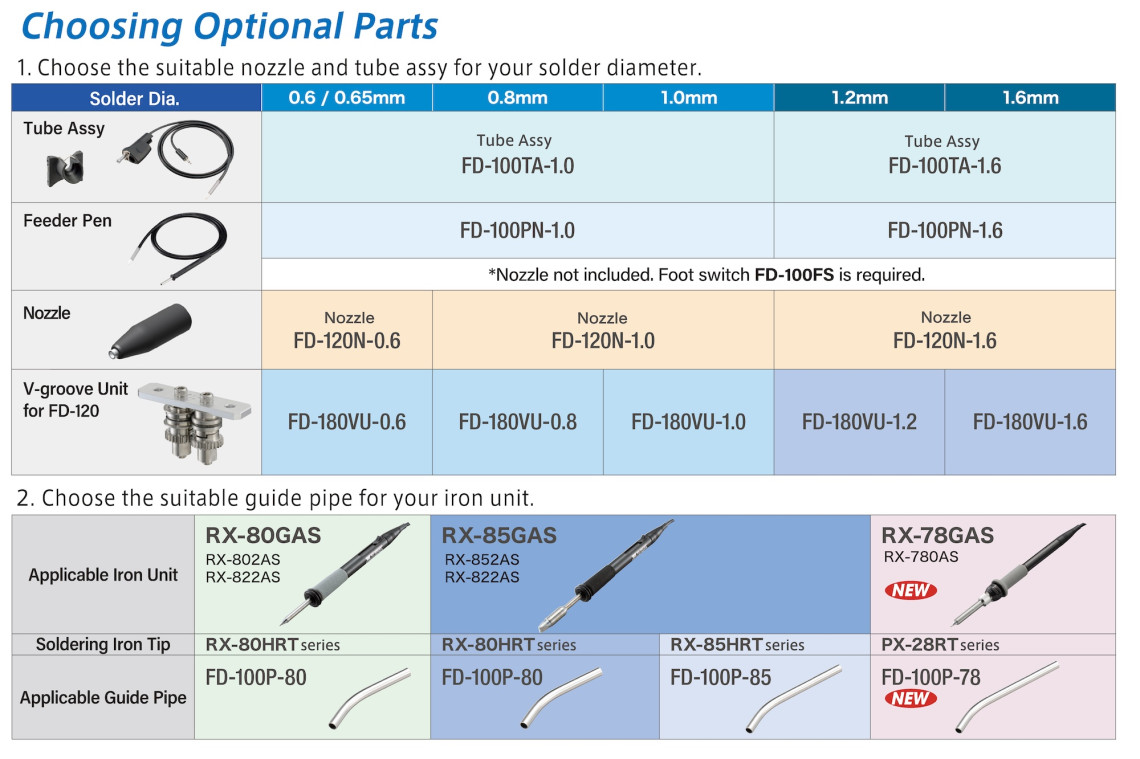

Choosing Optional Parts

Product Specifications

MODEL	FD-100
V-groove function	N/A
Voltage	100–240V AC 50/60Hz
Power Consumption	8W
Power Cord Length	1.5m inlet type
Applicable Soldering Irons	RX-802AS (with RX-80GAS)
	RX-852AS (with RX-85GAS)
	RX-822AS (with RX-80/85GAS)
	RX-701/711AS (with RX-72GAS)
Applicable Solder Diameter	ø0.6–ø1.6mm
Applicable Solder Diameter	LF solder applicable
Solder Feed Speed	6–22mm/sec
Solder Feed Speed	unresisted
Solder Feed Time	0–4sec
Returned Solder Amount	0–5mm (fixed speed)
Dimensions	FD-100:82(W) × 140(H) × 210(D)mm
Weight	FD-100:1.5kg (w/o solder)
