HALOGEN-FREE DESOLDERING WICKS Width : 3.0mm｜Desoldering Wicks｜Desoldering Products｜Products

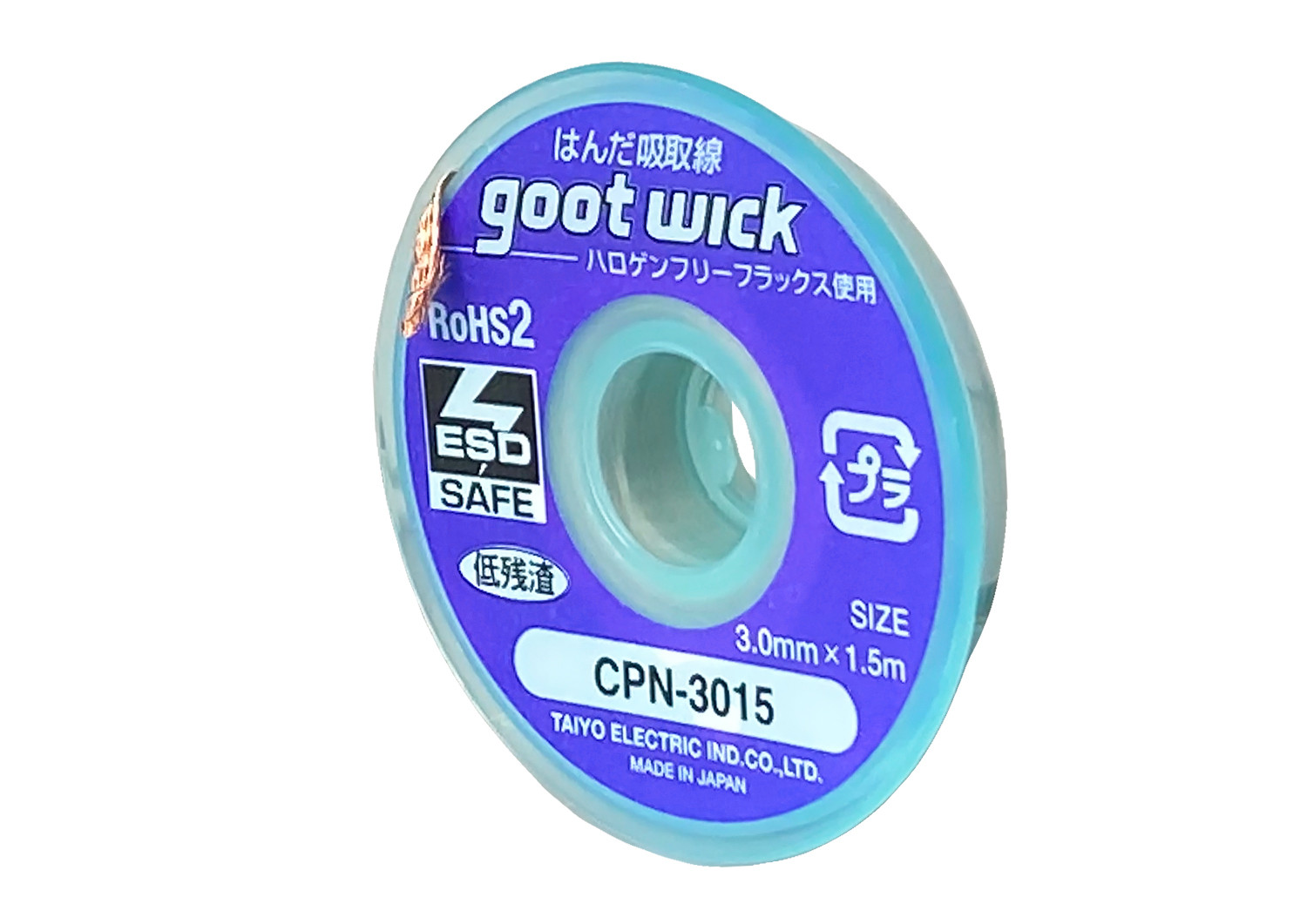

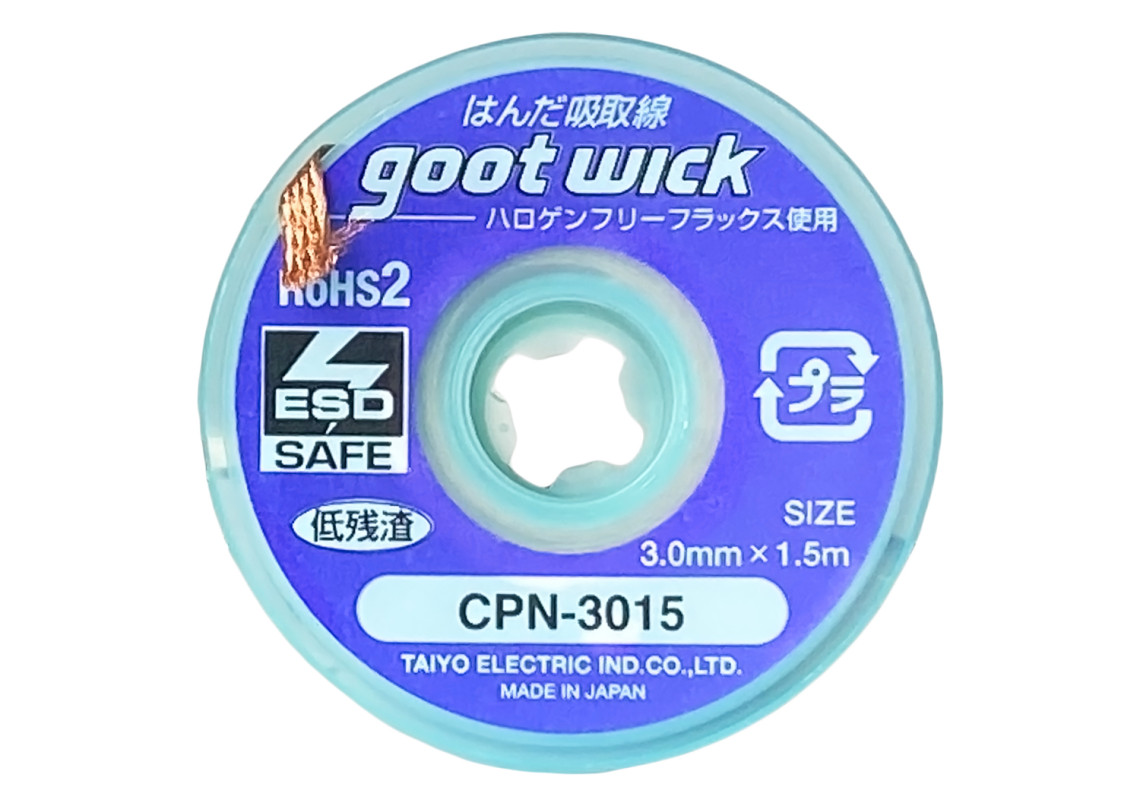

HALOGEN-FREE DESOLDERING WICKS Width : 3.0mm
CPN-3015

Less than 1,000 ppm each of chlorine, bromine, fluorine and iodine content (JEITA Standards)

Package Contents

Features

Specifications

Replacement Tips

Replacement Parts

HALOGEN-FREE DESOLDERING WICKS CPN SERIES

-HALOGEN-FREE* Does not intentionally contain halogens.
-RMA non-wash flux is used. (J-STD-004: ROL0)
-Plain-knitting wick recommended for lead-free applications with high heat conduction.
-Anti-static case.
*Less than 1,000 ppm each of chlorine, bromine, fluorine and iodine content. (JEITA Standards)

FOR LEAD-FREE DESOLDERING

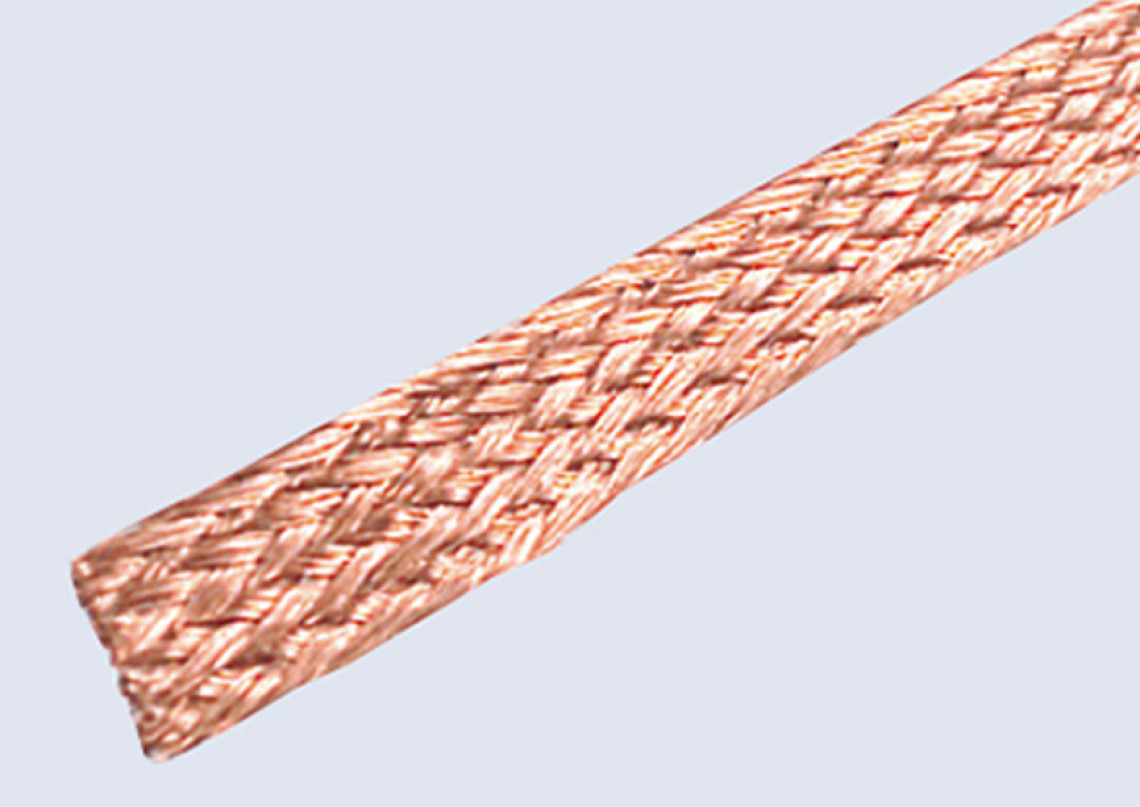

Our thin and soft desoldering wire’s flat braid has efficient thermal transmission. Removes solder faster with better heat response than previous wicks. Recommended for lead-free solder with high heating load.

SPECIFICATIONS

VIDEO

Product Specifications

MODEL	Width	Length	Quantity	Surface resistance value of the case
CPN-3015	Approx. 3.0 mm	Approx. 1.5 m	1 pc/Pack	10^9 – 10^12Ω
CPN-3015-10	Approx. 3.0 mm	Approx. 1.5 m	10 pcs/Pack	10^9 – 10^12Ω
