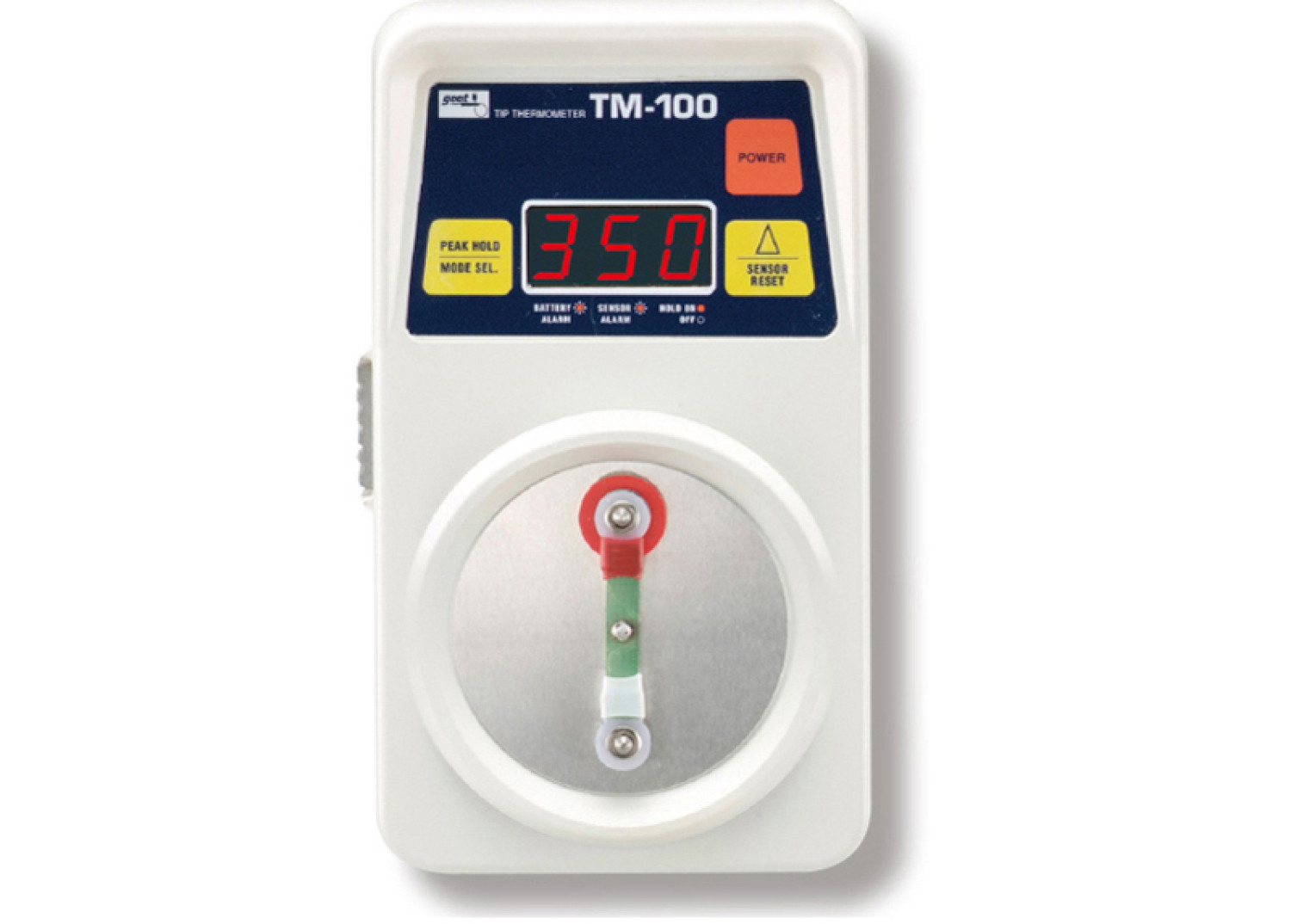

TIP THERMOMETER
TM-100

Measure quickly. Shorten your routine.

Package Contents	Sensor 3 pcs (TM-100S)

Features

Specifications

Replacement Tips

Replacement Parts

Measures Tip Temperature Accurately in Seconds

Wide temperature range 0-700°C (1292°F), as is necessary for soldering work. Tolerance stays in the range of +/-0.5% of the full scale (excluding sensor error).

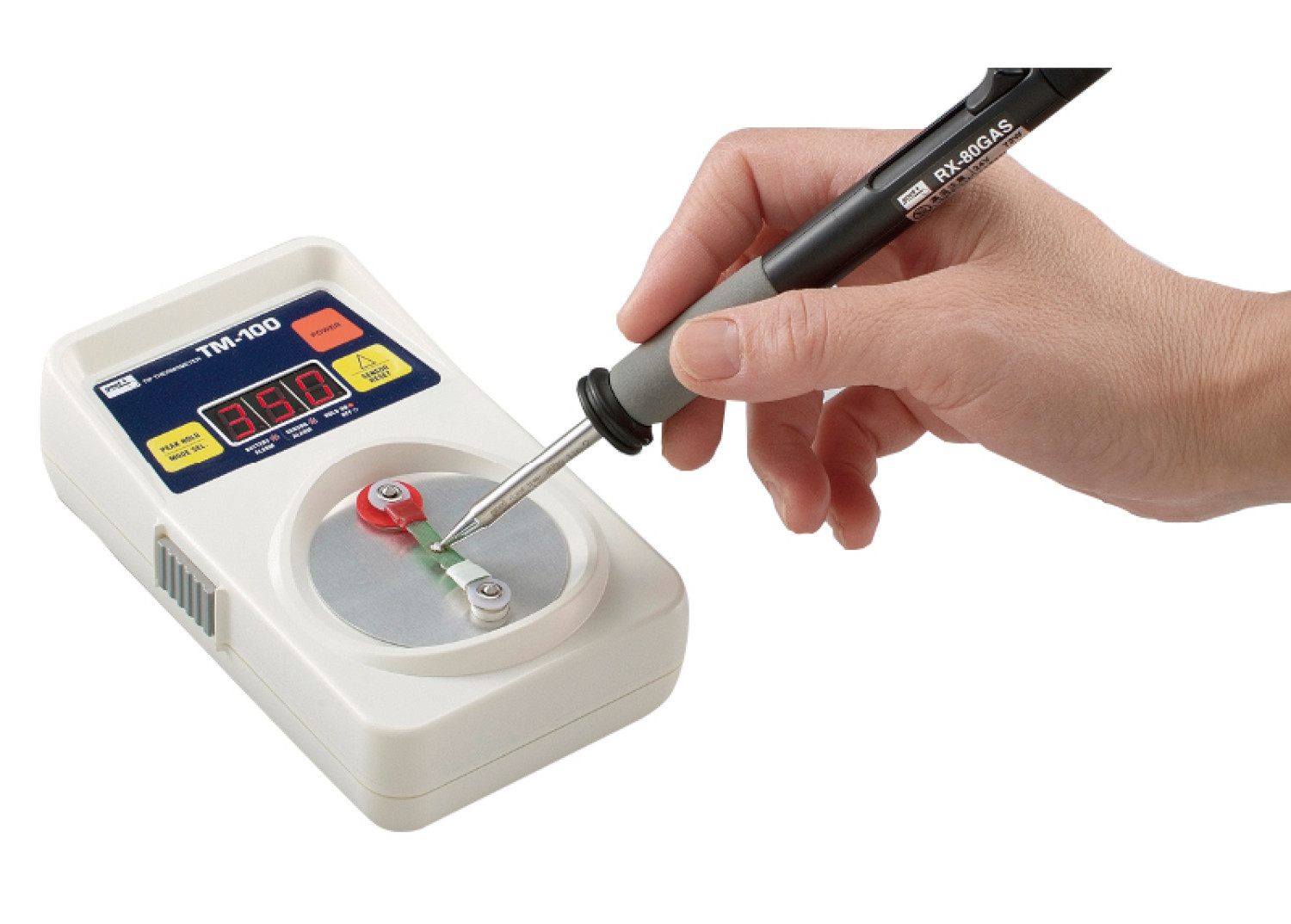

Sensor’s structure makes easy tip placement. Stable & accurate measuring in seconds, regardless of shape, or angle of tip.
Sensor is easily replaced.

*0-700°C is the range with (optional) sensor probe TM-100SP. With the standard sensor TM-100S, measurable 0-500°C (932˚F)

International Standard! JCSS Inspection Calibration is Available

JCSS inspection calibration is available as an option (for fee) in addition to manufacturer calibration (for fee).
JCSS Calibration Compliant Content: Complies with ISO/IEC 17025, ISO 9000s, IATF 16949, etc.
Can issue a calibration certificate with JCSS-certified symbol for international MRA.
*Measurement of earth resistance is not certified by JCSS calibration.

Product Specifications

Model		TM-100
Voltage		AA battery LR6 x 4pcs : 6V
Dimensions		83 (W) × 41(H) × 140(D) mm
Weight		150g (w/o battery)
Temperature	Resolution	1°C
	Measuring Range	Sensor TM-100S: 0-500°C Probe TM-100SP: 0-700°C
	Accuracy	0-500°C : ±3°C 501-700°C : ± 4°C
Operating Environment		0-40°C, 20-85%RH (no condensation)
Accessories		Sensor 3pcs AA battery LR6 x 4pcs
