HOT-AIR REWORK STATION
XFC-110

Auto Cool-Down function to protect the heater. Handles QFPs, PLCCs, SOLs.

Package Contents

Nozzles sold separately.

Features

Specifications

Replacement Tips

Replacement Parts

XFC Series Features

- Temperature management using ON-OFF control.
- Highly accurate Vacuum Pickup function
- Auto Cool Down function to protect the heater
- Digital temperature display for easy temperature management
- Flow meter for easy airflow management

*Nozzles sold separately.

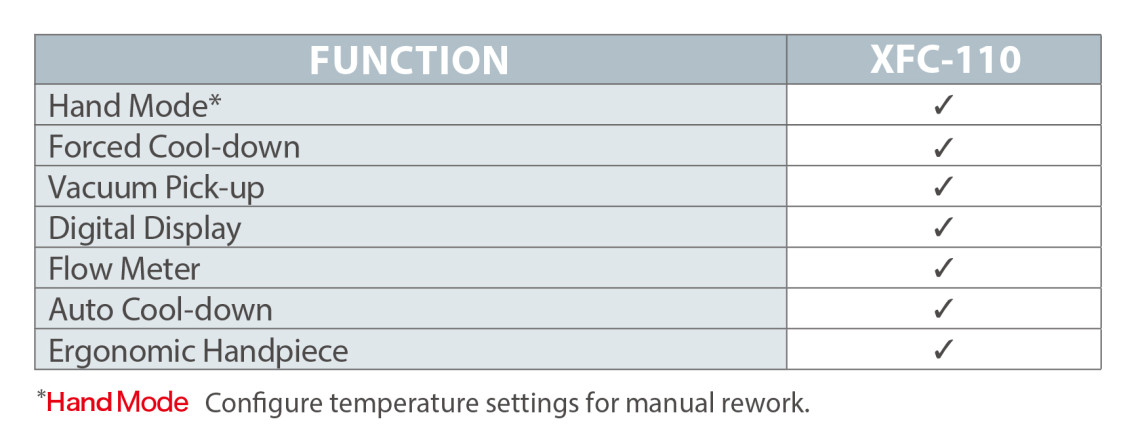

XFC Series Features Table

Modes

XFC Series Optional Nozzles (PAT.)

Product Specifications

Specifications

Model	XFC-301	XFC-300	XFC-110
Voltage	220 – 240V AC 50/60Hz		220V, 230V, 240V AC 50/60Hz
Power Consumption	400 – 460W		470W
Power Cord Length	1.5m Inlet type
Temperature Setting Range	50 – 550°C		150 – 550°C
Insulation Resistance	Over 10MΩ (500V DC)

Station Unit

Model	XFC-301	XFC-300	XFC-110
Output Voltage	220 – 240V AC		220V, 230V, 240V AC
Air flow Meter	Equipped
Air flow Volume	5 – 25L /min		5 – 25L /min
Auto-lift function	Included	–
Modes	3 (Profile-Normal, Profile-Auto, Hand)		1 (Hand)
Temperature Profiles	5 Zones (Temperature and Time)		–
Profile Memory	( Auto, Normal )×19, HAND×1		–
Dimensions	200(W) × 230(H) × 265(D)mm		182(W) × 179(H) × 263(D)mm
Weight	7.6kg ( w/o cord )		7.8kg ( w/o cord )
Accessory	Connection Cable with Preheater, Handpiece Holder, XVCW-SET		Handpiece Holder, XVCW-SET

Handpiece Unit

Model	XFC-301	XFC-300	XFC-110
Voltage	220 – 240V AC		220V, 230V, 240V AC
Power Consumption	370 – 430W		400W
Heater	Nichrome Heater
Hose length between Handpiece and Control Unit	1m
Vacuum Pickup	Integrated into Handpiece
Length	220mm (w/o cord)
Weight	180g (w/o nozzle, cord)
