SOLDER FOR ACOUSTIC COMPONENTS
SD-65

For soldering audio plugs. Optimized composition. Easy to use, even by beginners.

Package Contents

Solder is easy to use, even by beginners.

  • Leaded solder with excellent operability in a transparent tube.  Choose the solder best for your purpose.

*Flux is required for SD-68 and SD-69.

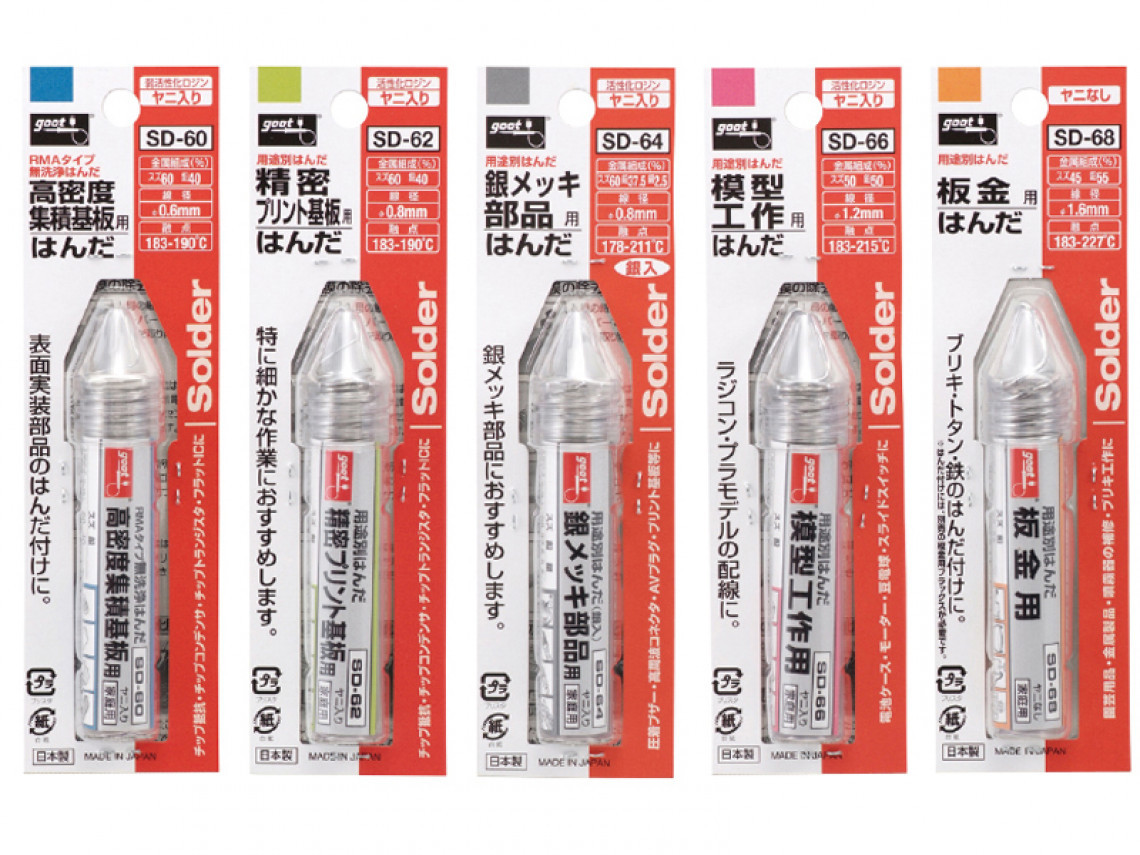

Product Specifications

Product Name Model JAN
code
Composition
(Sn–Pb)
M.T. Dia. Length Weight Rosin
Spiral Solder SD-101 330039 50–50% 183–215°C φ1.2mm Approx. 0.7m Approx. 5g Rosin
Core
Solder for High-density Integrated PCB SD-60 333115 60–40% 183–190°C φ0.6mm Approx. 5.5m Approx. 11g
Solder for Double-sided PCB SD-61 333122 63–37% 183–184°C φ0.8mm Approx. 4.1m Approx. 14g
Solder for Precision PCB SD-62 333139 60–40% 183–190°C φ0.8mm Approx. 4.1m Approx. 14g
Solder for Electronic Work SD-63 333146 60–40% 183–190°C φ1.0mm Approx. 3.0m Approx. 18g
Solder for Silver-plated Parts SD-64 333153 60–37.5–2.5(Ag)% 178–211°C φ0.8mm Approx. 4.1m Approx. 14g
Solder for Acoustic Components SD-65 333160 60–40% 183–190°C φ1.2mm Approx. 2.6m Approx. 22g
Solder for Model Work SD-66 333177 50–50% 183–215°C φ1.2mm Approx. 2.6m Approx. 22g
Solder for Household Electrical Appliances SD-67 333184 50–50% 183–215°C φ1.6mm Approx. 2.2m Approx. 34g
Solder for Sheet Metal* SD-68 333191 45–55% 183–227°C φ1.6mm Approx. 2.2m Approx. 34g None
Solder for Stainless Steel* SD-69 333207 63–37% 183–184°C φ1.6mm Approx. 2.2m Approx. 34g

*Flux is required for SD-68 and SD-69.
